Display Case for Minifigures, v3-beta

Posted on

The display case for LEGO® minifigures built using LEGO® pieces.

Disclaimer: LEGO® and the Minifigure is a trademark of the LEGO Group of companies which does not sponsor, authorize or endorse this project.

I do not collect LEGO® minifigures, just collect them. Anyway, I need a display case. This is my version.

After experimenting with the previous two versions ("Display Case for Minifigures, v3-alpha" and "Display Case for Minifigures, v3-alpha.1"), it was time to build the whole structure and see how my ideas would play out in practice.

Since the three floors required a lot of uniform parts, I couldn't find them in my collection or in the sets available for purchase (too expensive). And I wanted to finally keep the construction in uniform colors. So for the first time I ordered individual parts from specialized stores.

The result was even more robust than I expected. In particular, I thought that the center would sag because it has no support from below. However, this does not happen even when pressed.

On the other hand, there are some drawbacks:

  • the corners of the design do sag;
  • it's not convenient to put the design on the shelf because there are only four support points at the bottom, which are also located at the edges - the design can fall down if only one support goes over the edge of the shelf;
  • the lid of the design is too weakly attached and can easily come off if pulled.

Also note that the parts "4194010: ROUND BRICK 2X2X2" are still used in different colors - they are so rare that even in specialty stores they are hard to find.

Parts

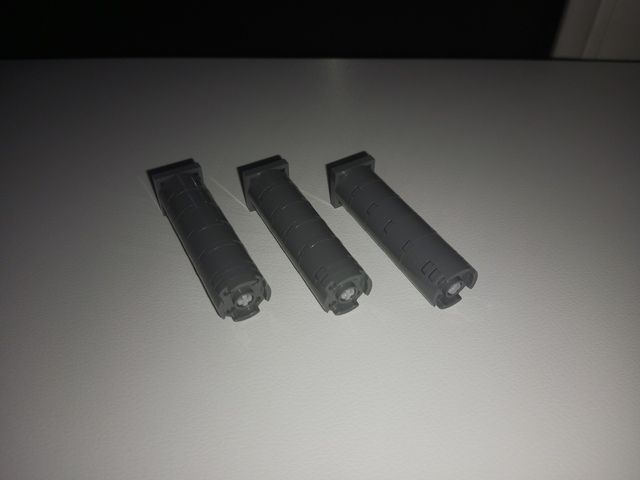

Center Column

1 column per level * 3 levels = 3 columns.

  • 4211094: PLATE 2X2 (Dark Stone Grey) — 1 piece per column * 3 columns = 3 pieces
  • 4249139: BRICK Ø16 W. CROSS (Dark Stone Grey) — 5 pieces per column * 3 columns = 15 pieces
  • 4211042: PLATE 2X2 ROUND (Dark Stone Grey) — 2 pieces per column * 3 columns = 6 pieces
  • 6130009: CROSS AXLE 7M (Bright Yellow) — 1 piece per column * 3 columns = 3 pieces

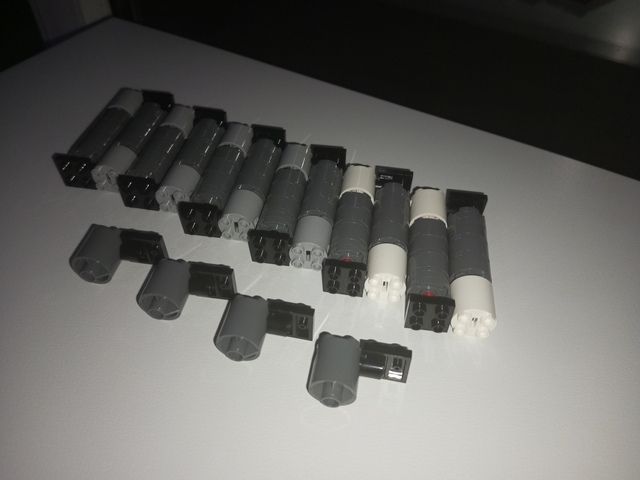

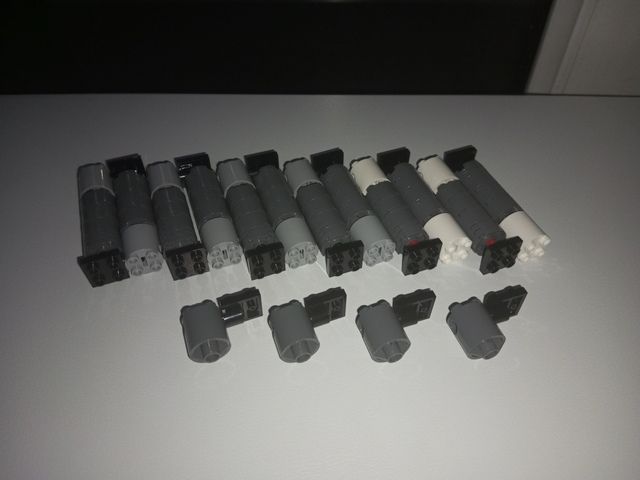

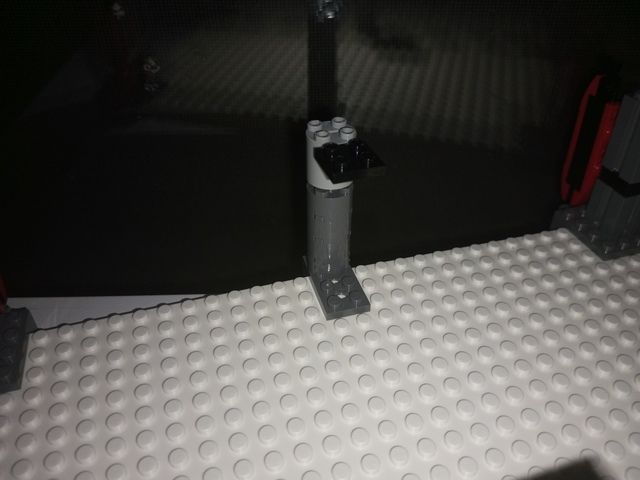

Side Center Column

  • side center column itself — 4 columns per level * 3 levels = 12 columns:
    • 4161673: ROUND BRICK 2X2X2 (Dark Stone Grey) — 1 piece per column * 12 columns = 12 pieces
    • 4249139: BRICK Ø16 W. CROSS (Dark Stone Grey) — 3 pieces per column * 12 columns = 36 pieces
    • 4211042: PLATE 2X2 ROUND (Dark Stone Grey) — 2 pieces per column * 12 columns = 24 pieces
    • 6130002: CROSS AXLE 6M (Bright Red) — 1 piece per column * 12 columns = 12 pieces
    • 6061032: PLATE 2X2 + ONE HULE Ø4,8 (Black) — 1 piece per column * 12 columns = 12 pieces
    • 6279875: CONNECTOR PEG W. FRICTION (Black) — 1 piece per column * 12 columns = 12 pieces

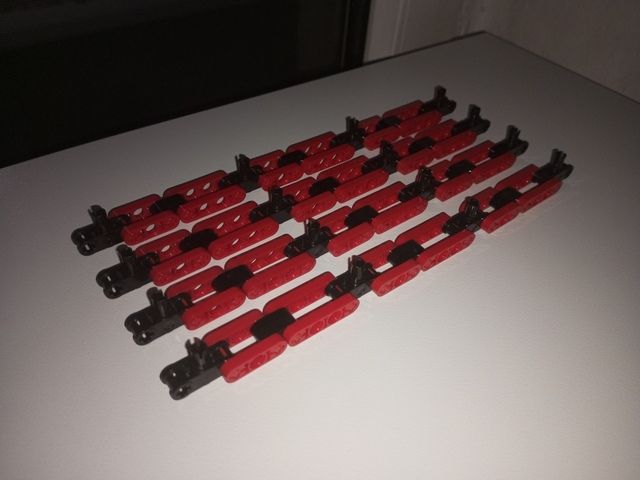

  • side center column reinforcement — 1 reinforcement per column * 12 columns = 12 reinforcements:
    • 6276951: DOUBLE CROSS BLOCK (Black) — 1 piece per reinforcement * 12 reinforcements = 12 pieces
    • 6279875: CONNECTOR PEG W. FRICTION (Black) — 1 piece per reinforcement * 12 reinforcements = 12 pieces
    • 4142865: 2M CROSS AXLE W. GROOVE (Bright Red) — 4 pieces per reinforcement * 12 reinforcements = 48 pieces
    • 6330205: LEVER 1X4, WITHOUT NOTCH (Bright Red) — 2 pieces per reinforcement * 12 reinforcements = 24 pieces
    • 6338428: TECHNIC LEVER 2M (Black) — 2 pieces per reinforcement * 12 reinforcements = 24 pieces
    • 6364451: TECHNIC LEVER 3M (Bright Red) — 2 pieces per reinforcement * 12 reinforcements = 24 pieces

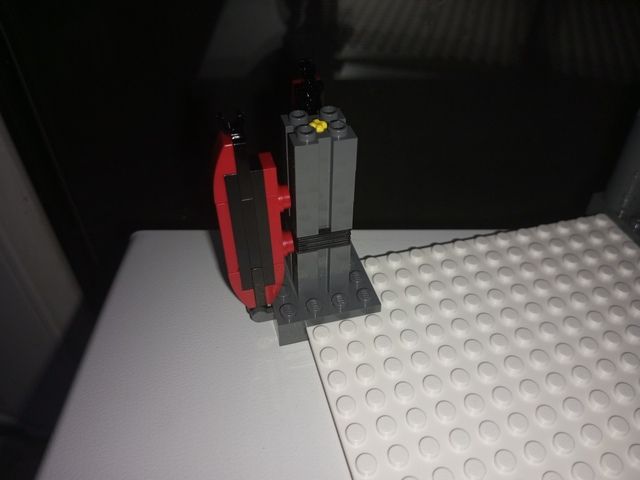

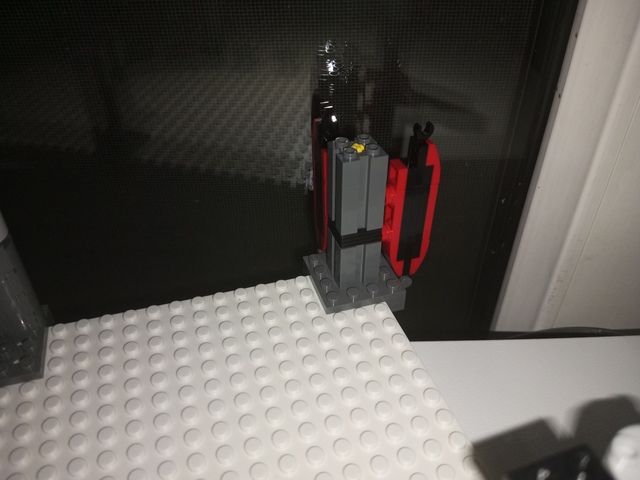

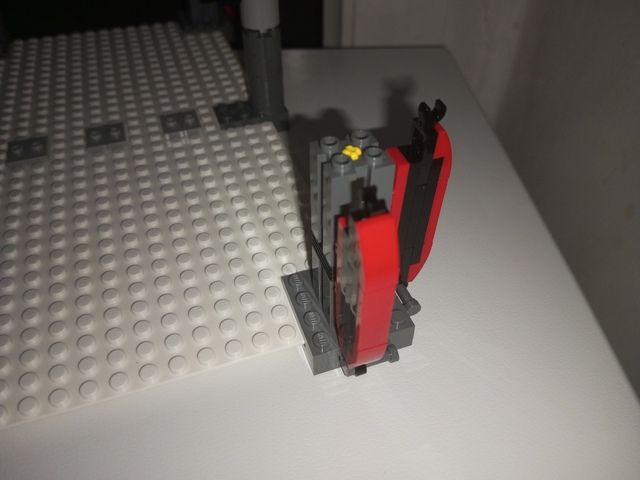

Corner Column

  • corner column itself — 4 columns per level * 3 levels = 12 columns:
    • 6236949: BRICK 2X2 W/GROOVE A.CR.HOLE (Dark Stone Grey) — 5 pieces per column * 12 columns = 60 pieces
    • 6325254: DESIGN PLATE 2X2X2/3, NO. 1 (Black) — 1 piece per column * 12 columns = 12 pieces
    • 6130009: CROSS AXLE 7M (Bright Yellow) — 1 piece per column * 12 columns = 12 pieces
  • corner column reinforcement — 2 reinforcements per column * 12 columns = 24 reinforcements:
    • 6029946: PLATE W. BOW 1X2X2/3 (Bright Red) — 2 pieces per reinforcement * 24 reinforcements = 48 pieces
    • 4533742: FLAT TILE 1X3 (Bright Red) — 1 piece per reinforcement * 24 reinforcements = 24 pieces
    • 6350415: PLATE 1X5 (Black) — 2 pieces per reinforcement * 24 reinforcements = 48 pieces
    • 6336989: PLATE 2X1 W/HOLDER,VERTICAL (Black) — 2 pieces per reinforcement * 24 reinforcements = 48 pieces
    • 362326: PLATE 1X3 (Black) — 1 piece per reinforcement * 24 reinforcements = 24 pieces
    • 302421: PLATE 1X1 (Bright Red) — 1 piece per reinforcement * 24 reinforcements = 24 pieces
    • 362321: PLATE 1X3 (Bright Red) — 1 piece per reinforcement * 24 reinforcements = 24 pieces
    • 6186398: PLATE, W/ HALF BOW, INV. 1X2X2/3 (Bright Red) — 1 piece per reinforcement * 24 reinforcements = 24 pieces
    • 614121: ROUND PLATE 1X1 (Bright Red) — 2 pieces per reinforcement * 24 reinforcements = 48 pieces

Level Base

  • 6295194: BASE PLATE 32X32 (White) — 1 piece per level * 3 levels = 3 pieces
  • center column base — 1 column base per level * 3 levels = 3 column bases:
    • 4211094: PLATE 2X2 (Dark Stone Grey) — 1 piece per column base * 3 column bases = 3 pieces
  • side center column base — 4 column bases per level * 3 levels = 12 column bases:
    • 4227398: PLATE 2X4, 3XØ4.9 (Dark Stone Grey) — 1 piece per column base * 12 column bases = 12 pieces
    • 4211063: PLATE 1X2 (Dark Stone Grey) — 1 piece per column base * 12 column bases = 12 pieces
    • 4211065: PLATE 2X4 (Dark Stone Grey) — 1 piece per column base * 12 column bases = 12 pieces
  • corner column base — 4 column bases per level * 3 levels = 12 column bases:
    • 4243831: PLATE 4X4 (Dark Stone Grey) — 2 pieces per column base * 12 column bases = 24 pieces
    • 4210719: PLATE 1X1 (Dark Stone Grey) — 3 pieces per column base * 12 column bases = 36 pieces
    • 6146321: PLATE 1X2 W. STICK 3.18 (Dark Stone Grey) — 2 pieces per column base * 12 column bases = 24 pieces

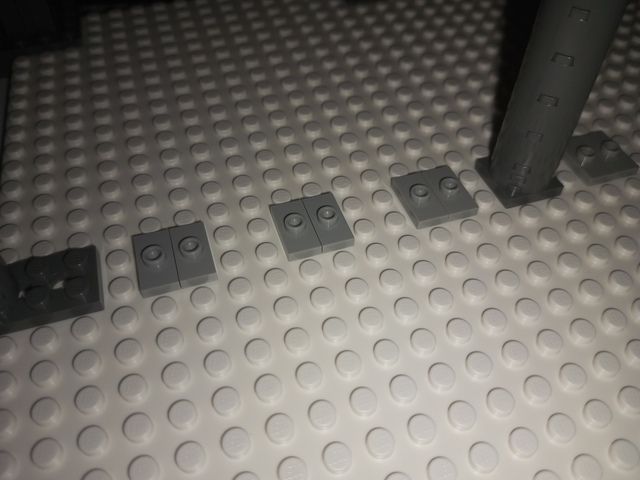

  • additional fastenings for LEGO® minifigures:
    • 6066097: PLATE 1X2 W. 1 KNOB (Medium Stone Grey) — 12 pieces per level * 3 levels = 36 pieces

Common Base

  • side center column base — 4 column bases:
    • 4161673: ROUND BRICK 2X2X2 (Dark Stone Grey) — 1 piece per column base * 4 column bases = 4 pieces
    • 6061032: PLATE 2X2 + ONE HULE Ø4,8 (Black) — 1 piece per column base * 4 column bases = 4 pieces
    • 6279875: CONNECTOR PEG W. FRICTION (Black) — 2 pieces per column base * 4 column bases = 8 pieces
    • 6276951: DOUBLE CROSS BLOCK (Black) — 1 piece per column base * 4 column bases = 4 pieces

Common Lid

  • 6295194: BASE PLATE 32X32 (White) — 1 piece
  • side center column lid — 4 column lids:
    • 4227398: PLATE 2X4, 3XØ4.9 (Dark Stone Grey) — 1 piece per column lid * 4 column lids = 4 pieces
    • 4211063: PLATE 1X2 (Dark Stone Grey) — 1 piece per column lid * 4 column lids = 4 pieces
    • 4211065: PLATE 2X4 (Dark Stone Grey) — 1 piece per column lid * 4 column lids = 4 pieces
  • corner column lid — 4 column lids:
    • 4243831: PLATE 4X4 (Dark Stone Grey) — 2 pieces per column lid * 4 column lids = 8 pieces
    • 4210719: PLATE 1X1 (Dark Stone Grey) — 3 pieces per column lid * 4 column lids = 12 pieces
    • 6146321: PLATE 1X2 W. STICK 3.18 (Dark Stone Grey) — 2 pieces per column lid * 4 column lids = 8 pieces

Photos

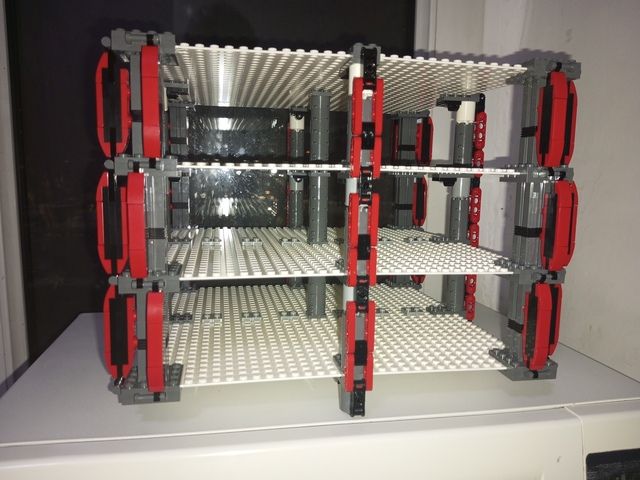

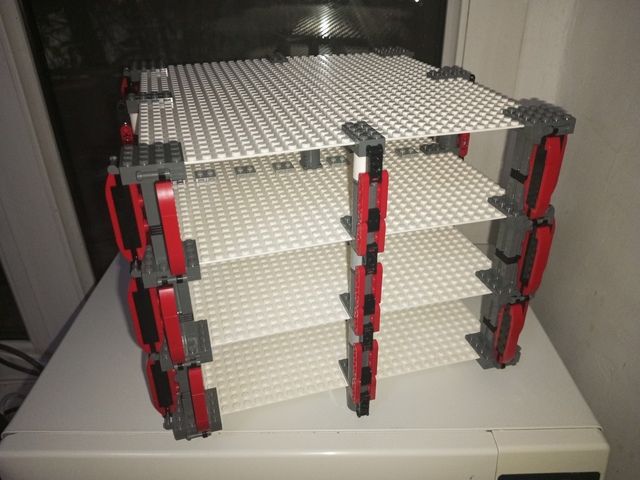

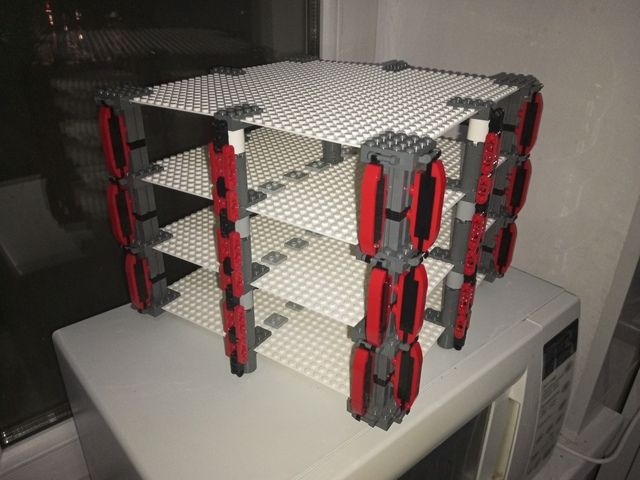

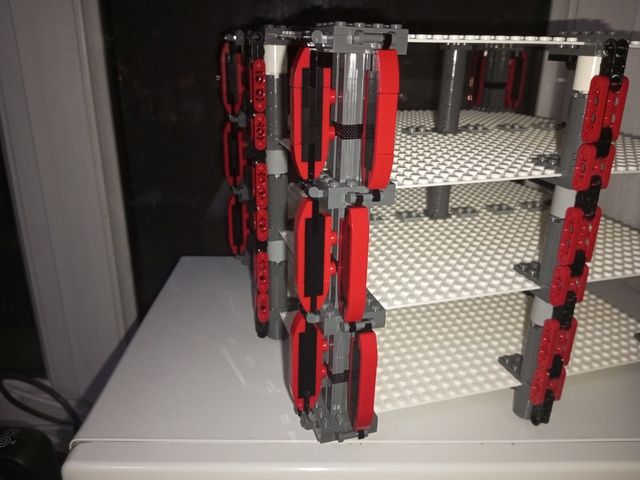

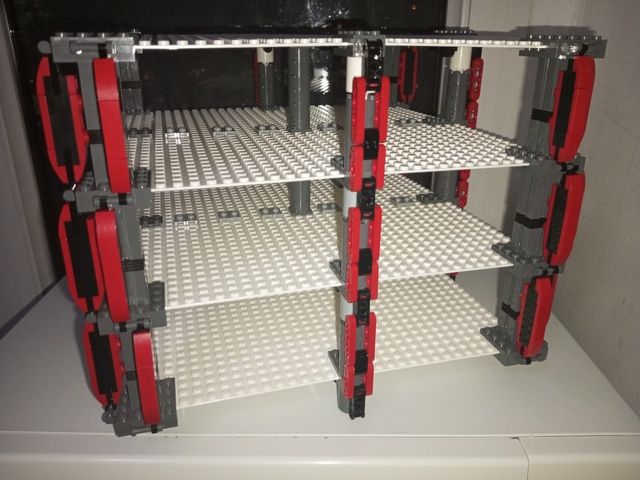

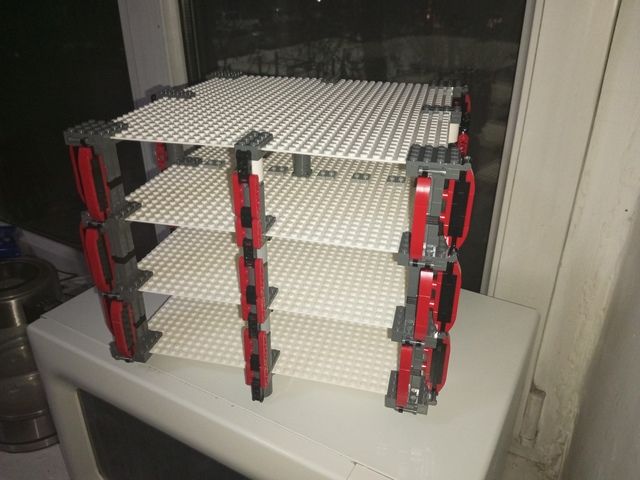

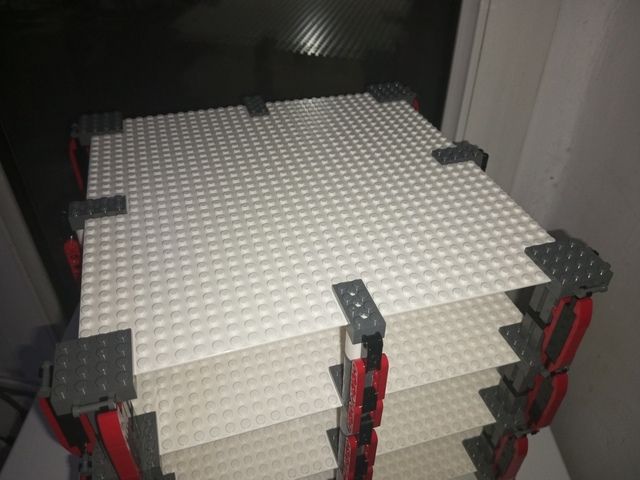

General photos

Sagging

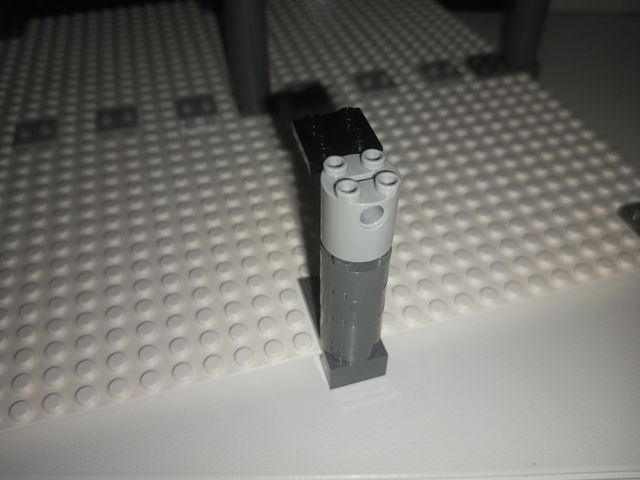

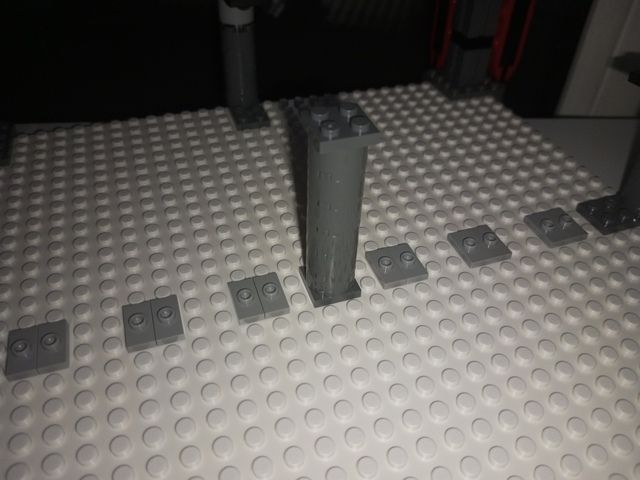

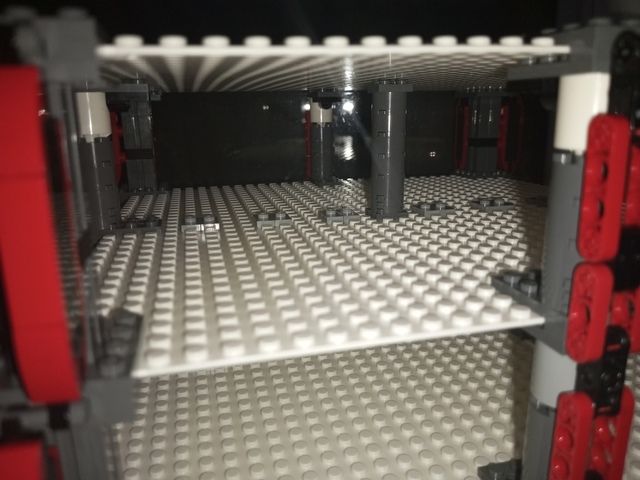

  • the center of the design — no sagging:

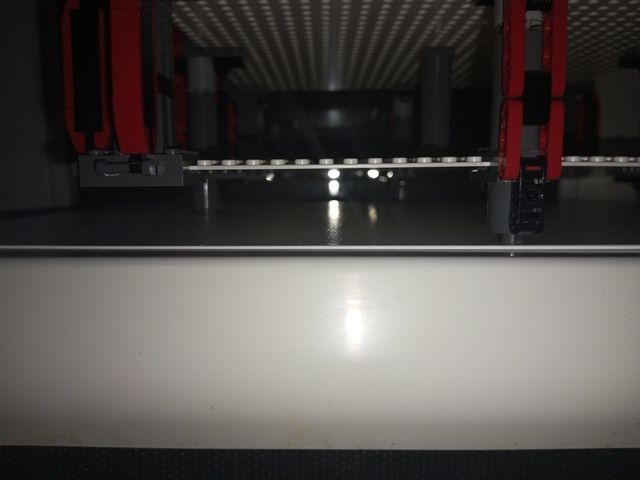

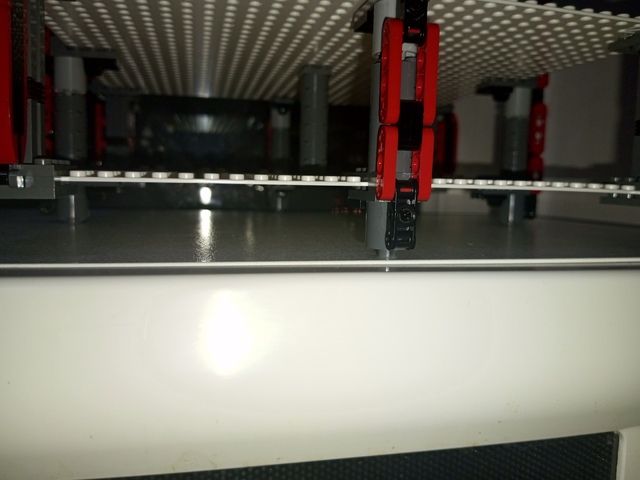

  • the corners of the design — sagging:

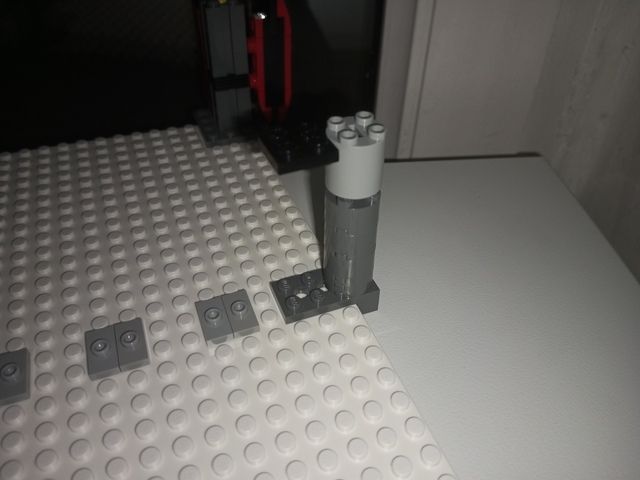

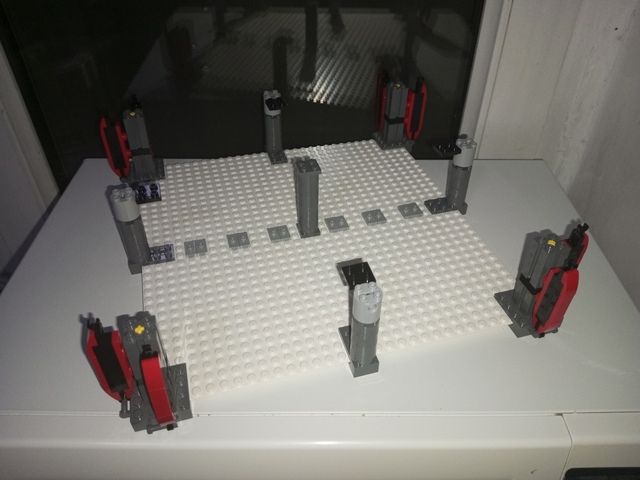

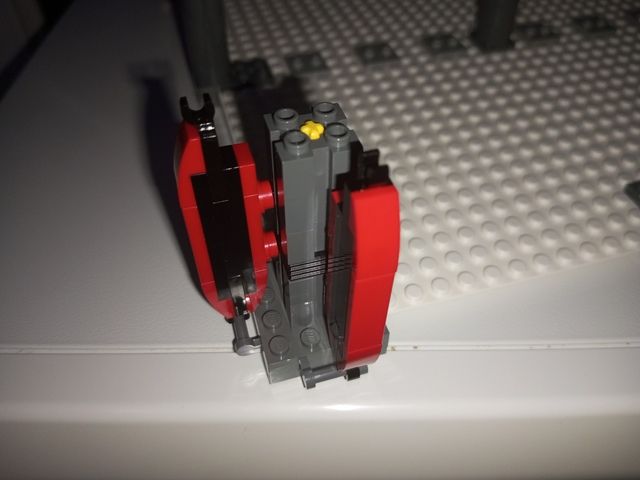

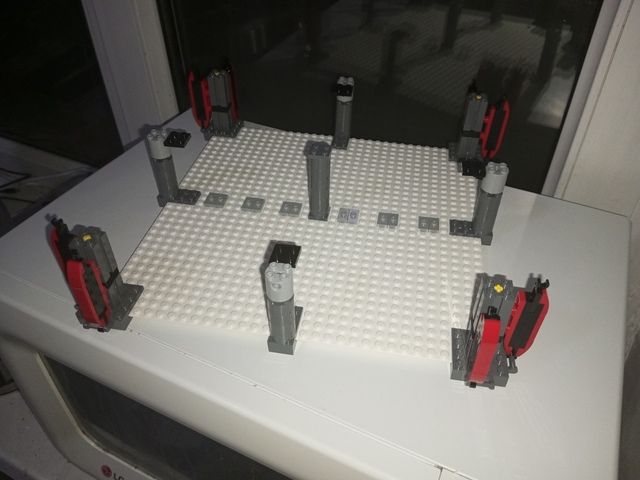

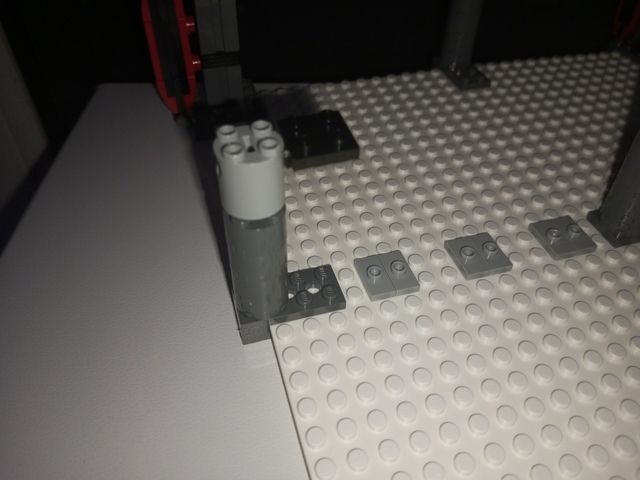

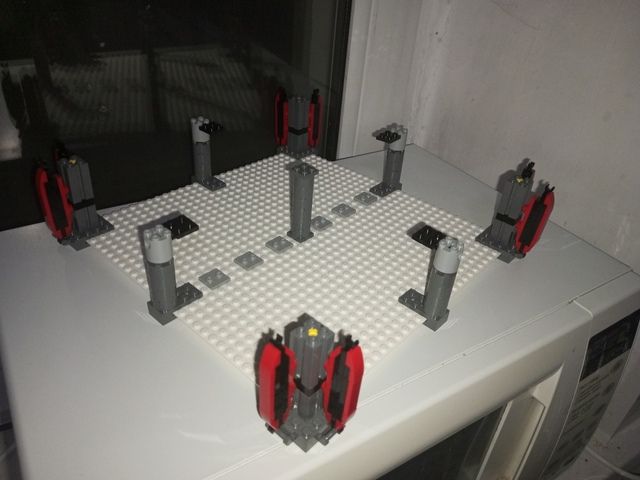

Single floor

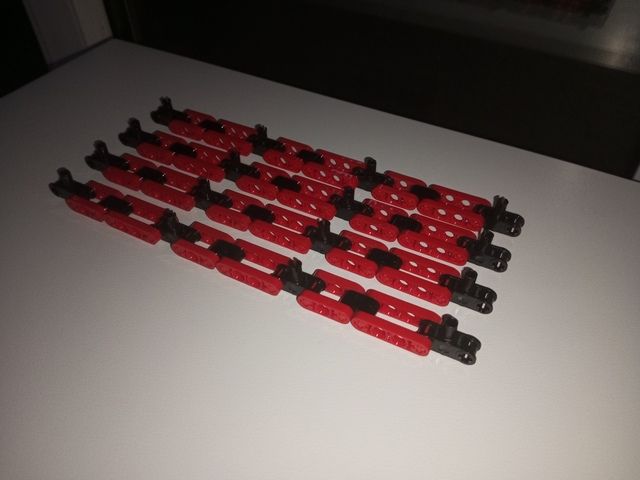

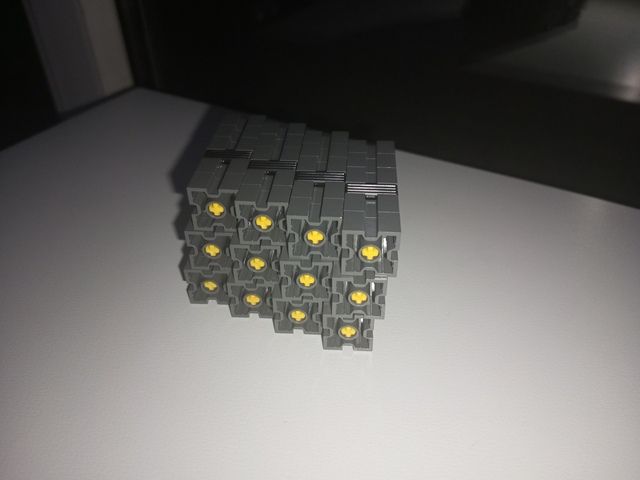

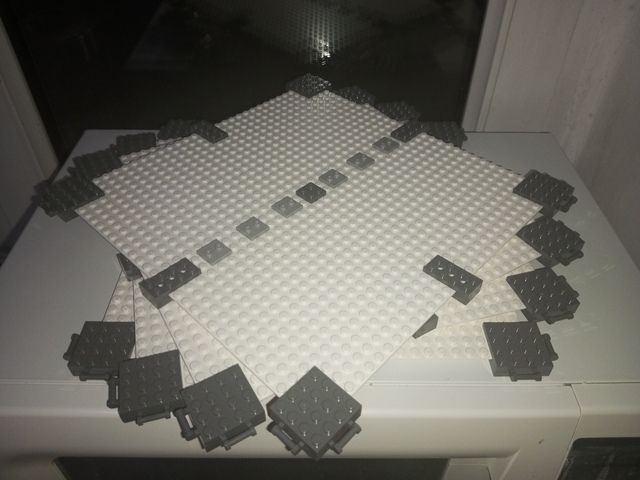

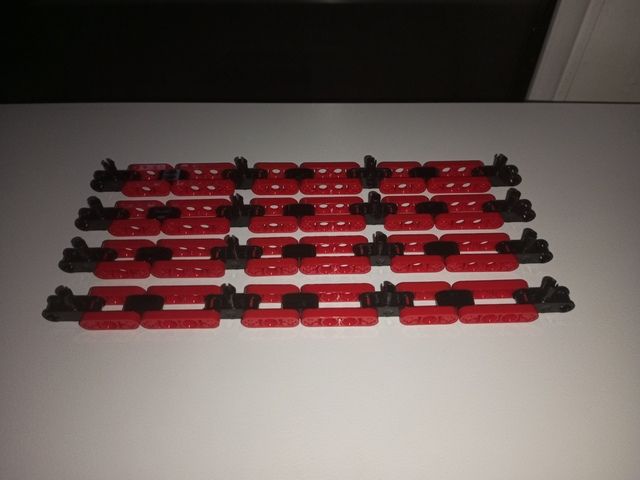

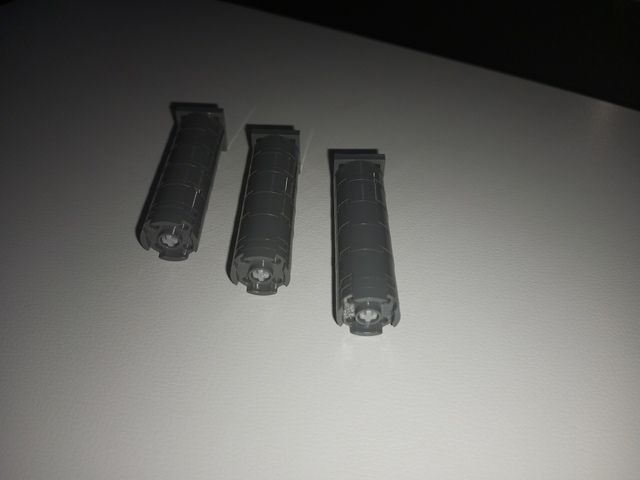

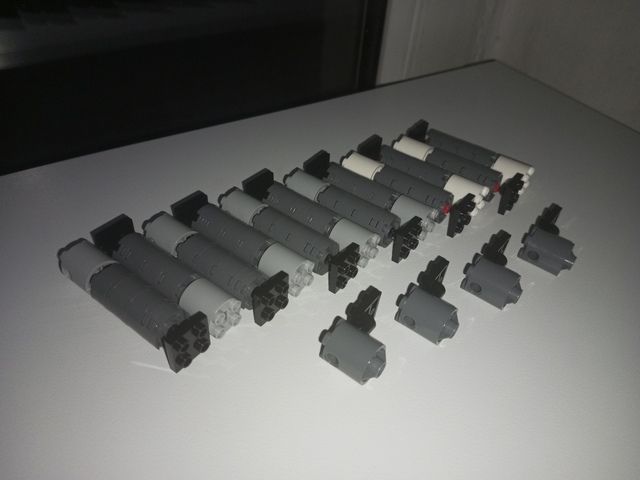

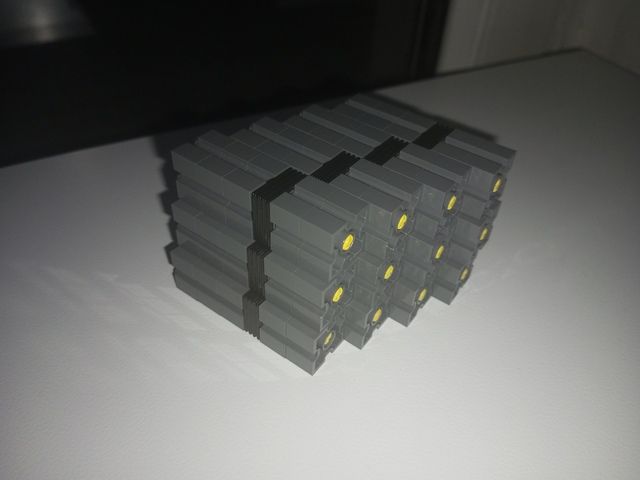

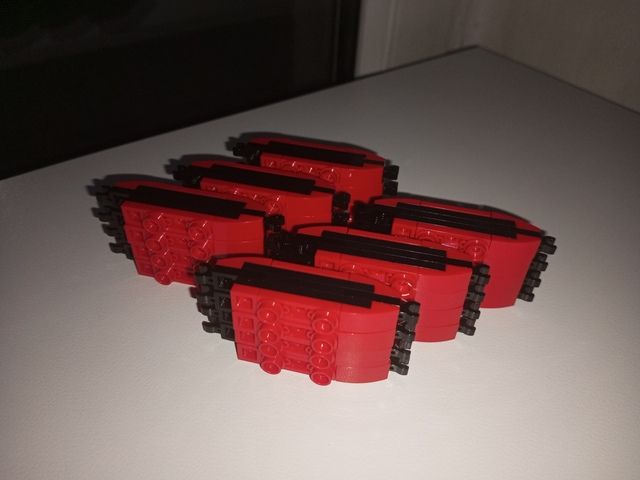

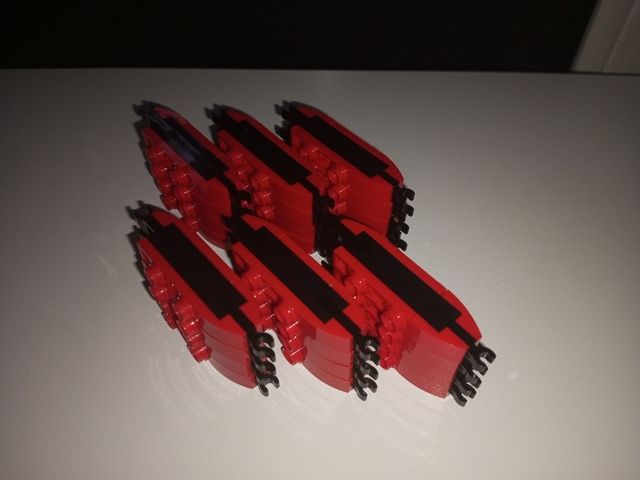

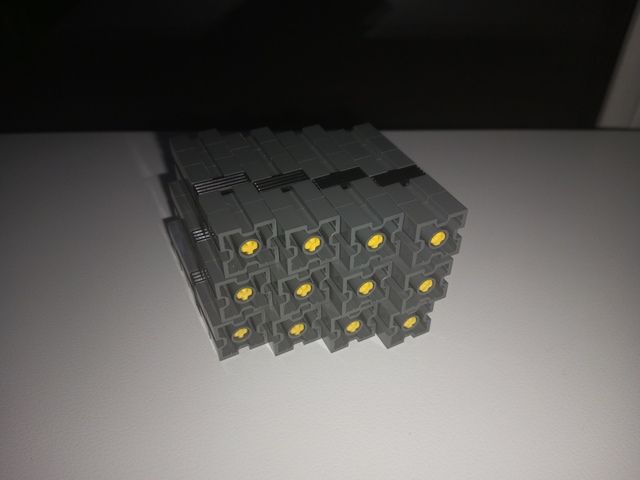

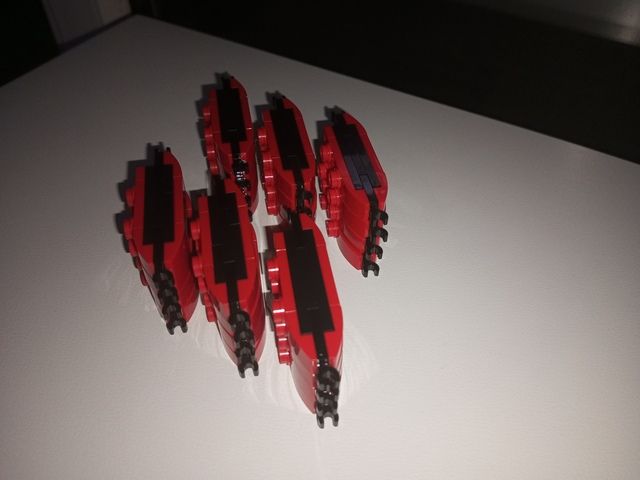

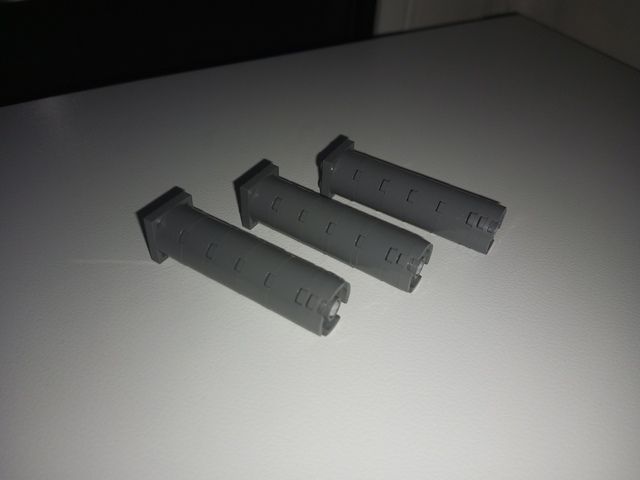

Floor elements

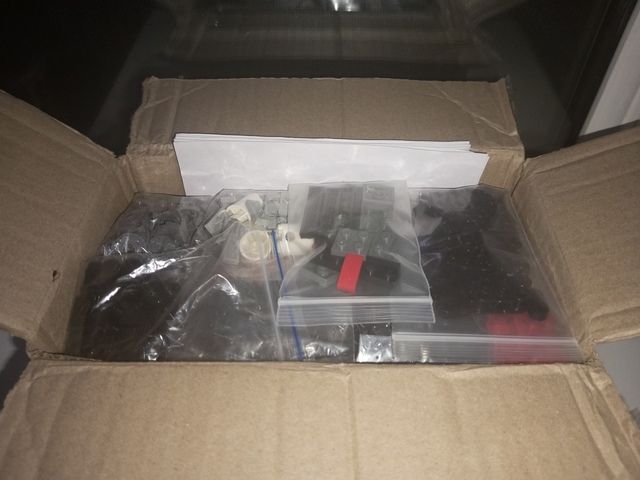

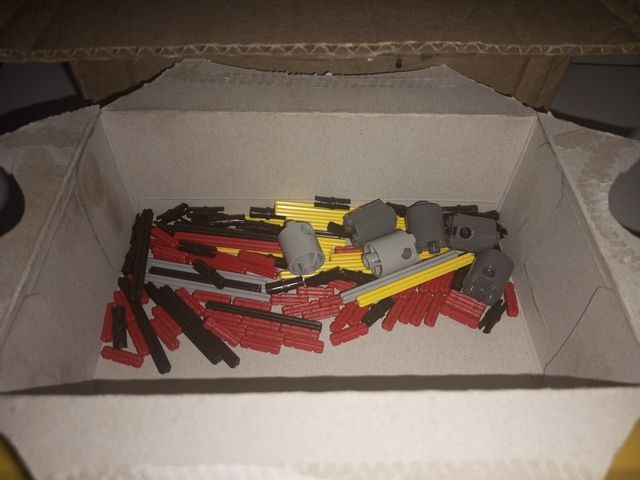

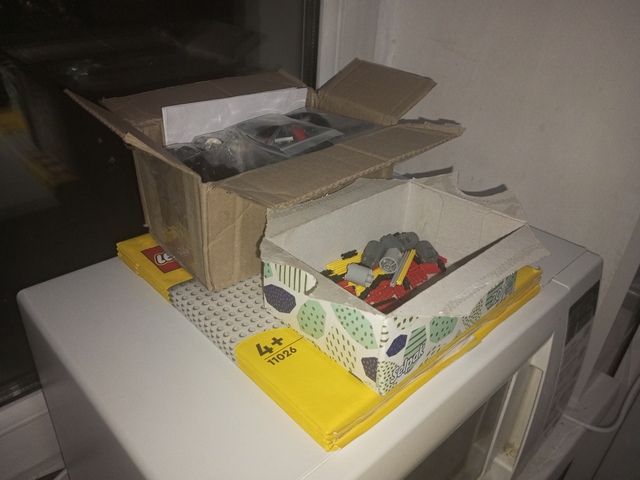

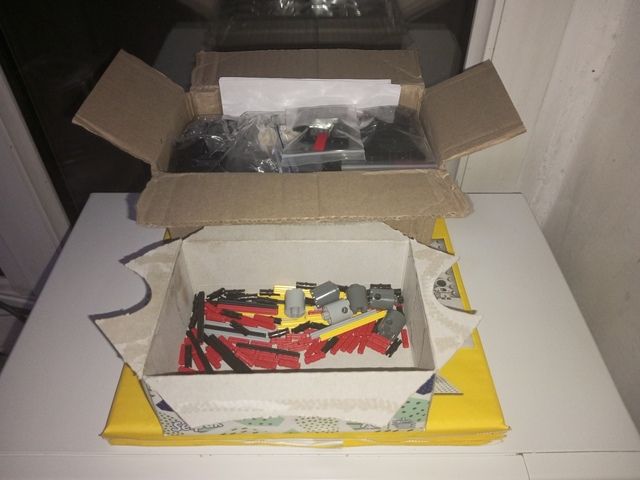

Bought parts

Videos
