Wizard Parser, v4.3

Posted on

LL(*)-парсер на C++ с поддержкой DSL для описания грамматики в EBNF непосредственно в коде программы.

Improve error handling in the parser module.

Change Log

  • In the parser module:
    • Fix default values in a constructor of the repetition_parser class.
    • Fix error handling:
      • in the alternation_parser::parse() method;
      • in the exception_parser::parse() method;
      • in the lookahead_parser::parse() method;
      • in the repetition_parser::parse() method.
    • Refactor:
      • concatenation_parser::parse() method;
      • match_parser::parse() method;
      • typing_parser::parse() method.
    • In the tests:
      • Upgrade tests:
        • of the alternation_parser class;
        • of the exception_parser class;
        • of the lookahead_parser class;
        • of the repetition_parser class.
      • Improve tests:
        • of the alternation_parser class;
        • of the concatenation_parser class;
        • of the dummy_parser class;
        • of the exception_parser class;
        • of the lookahead_parser class;
        • of the repetition_parser class;
        • of the typing_parser class.
      • Complete checking of methods calls:
        • in classes:
          • alternation_parser;
          • concatenation_parser;
          • dummy_parser;
          • exception_parser;
          • lookahead_parser;
          • repetition_parser;
          • typing_parser;
        • in functions:
          • parse_all();
          • parse().
  • In the example:

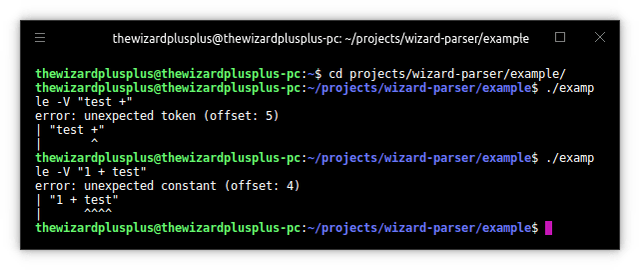

    • Enrich positional exceptions:
      • mark an unexpected entity:
        • position of it;
        • length of it;
      • add the verbose option:
        • parse it;
        • use it.

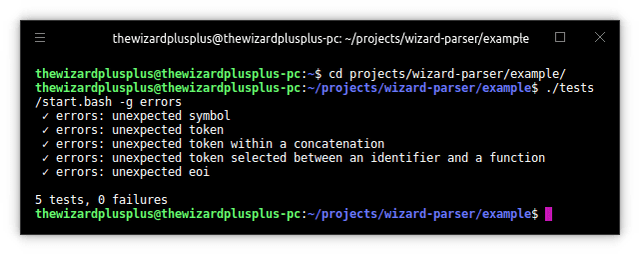

    • Extend tests of errors in the example.

Пример использования

#define THEWIZARDPLUSPLUS_WIZARD_PARSER_PARSER_MACROSES

#include "vendor/better-enums/enum_strict.hpp"
#include "vendor/range/v3/view/drop.hpp"
#include "vendor/range/v3/view/transform.hpp"
#include "vendor/fmt/format.hpp"
#include "vendor/range/v3/view/chunk.hpp"
#include "vendor/range/v3/to_container.hpp"
#include "vendor/range/v3/numeric/accumulate.hpp"
#include "vendor/docopt/docopt.hpp"
#include "vendor/range/v3/algorithm/find_if.hpp"
#include <thewizardplusplus/wizard_parser/exceptions/unexpected_entity_exception.hpp>
#include <thewizardplusplus/wizard_parser/lexer/lexeme.hpp>
#include <thewizardplusplus/wizard_parser/lexer/tokenize.hpp>
#include <thewizardplusplus/wizard_parser/parser/rule_parser.hpp>
#include <thewizardplusplus/wizard_parser/parser/dummy_parser.hpp>
#include <thewizardplusplus/wizard_parser/parser/typing_parser.hpp>
#include <thewizardplusplus/wizard_parser/parser/match_parser.hpp>
#include <thewizardplusplus/wizard_parser/parser/concatenation_parser.hpp>
#include <thewizardplusplus/wizard_parser/parser/lookahead_parser.hpp>
#include <thewizardplusplus/wizard_parser/parser/repetition_parser.hpp>
#include <thewizardplusplus/wizard_parser/parser/alternation_parser.hpp>
#include <thewizardplusplus/wizard_parser/parser/ast_node.hpp>
#include <thewizardplusplus/wizard_parser/exceptions/positional_exception.hpp>
#include <thewizardplusplus/wizard_parser/parser/parse.hpp>
#include <thewizardplusplus/wizard_parser/utilities/utilities.hpp>
#include <unordered_map>
#include <string>
#include <cstddef>
#include <functional>
#include <vector>
#include <cstdint>
#include <regex>
#include <iostream>
#include <cstdlib>
#include <stdexcept>
#include <string_view>
#include <iterator>
#include <sstream>
#include <limits>
#include <iomanip>
#include <exception>

using namespace thewizardplusplus::wizard_parser;
using namespace thewizardplusplus::wizard_parser::parser::operators;
using namespace std::literals::string_literals;

using constant_group = std::unordered_map<std::string, double>;

struct function final {
    const std::size_t arity;
    const std::function<double(const std::vector<double>&)> handler;
};

using function_group = std::unordered_map<std::string, function>;

BETTER_ENUM(entity_type, std::uint8_t,
    node = exceptions::entity_type::_size(),
    constant,
    function
)

template<entity_type::_integral type>
using unexpected_entity_exception =
    exceptions::base_unexpected_entity_exception<entity_type, type>;

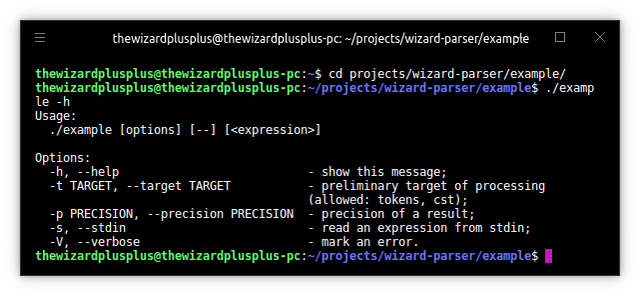

const auto usage =
R"(Usage:
  ./example [options] [--] [<expression>]

Options:
  -h, --help                           - show this message;
  -t TARGET, --target TARGET           - preliminary target of processing
                                       (allowed: tokens, cst);
  -p PRECISION, --precision PRECISION  - precision of a result;
  -s, --stdin                          - read an expression from stdin;
  -V, --verbose                        - mark an error.)";
const auto lexemes = lexer::lexeme_group{
    {std::regex{R"(\+)"}, "plus"},
    {std::regex{"-"}, "minus"},
    {std::regex{R"(\*)"}, "star"},
    {std::regex{"/"}, "slash"},
    {std::regex{"%"}, "percent"},
    {std::regex{R"(\()"}, "opening_parenthesis"},
    {std::regex{R"(\))"}, "closing_parenthesis"},
    {std::regex{","}, "comma"},
    {std::regex{R"(\d+(?:\.\d+)?(?:e-?\d+)?)"}, "number"},
    {std::regex{R"([A-Za-z_]\w*)"}, "identifier"},
    {std::regex{R"(\s+)"}, "whitespace"}
};
const auto lexemes_exceptions = lexer::exception_group{"whitespace"};
// Boost 1.70.0, Math Toolkit 2.9.0
const auto constants = constant_group{
    {"pi", 3.141592653589793238462643383279502884},
    {"e", 2.718281828459045235360287471352662497}
};
const auto functions = function_group{
    {"+", {2, [] (const auto& arguments) {
        return arguments.front() + arguments.back();
    }}},
    {"-", {2, [] (const auto& arguments) {
        return arguments.front() - arguments.back();
    }}},
    {"*", {2, [] (const auto& arguments) {
        return arguments.front() * arguments.back();
    }}},
    {"/", {2, [] (const auto& arguments) {
        return arguments.front() / arguments.back();
    }}},
    {"%", {2, [] (const auto& arguments) {
        return static_cast<std::int64_t>(arguments.front())
            % static_cast<std::int64_t>(arguments.back());
    }}},
    {"floor", {1, [] (const auto& arguments) {
        return std::floor(arguments.front());
    }}},
    {"ceil", {1, [] (const auto& arguments) {
        return std::ceil(arguments.front());
    }}},
    {"trunc", {1, [] (const auto& arguments) {
        return std::trunc(arguments.front());
    }}},
    {"round", {1, [] (const auto& arguments) {
        return std::round(arguments.front());
    }}},
    {"sin", {1, [] (const auto& arguments) {
        return std::sin(arguments.front());
    }}},
    {"cos", {1, [] (const auto& arguments) {
        return std::cos(arguments.front());
    }}},
    {"tn", {1, [] (const auto& arguments) {
        return std::tan(arguments.front());
    }}},
    {"arcsin", {1, [] (const auto& arguments) {
        return std::asin(arguments.front());
    }}},
    {"arccos", {1, [] (const auto& arguments) {
        return std::acos(arguments.front());
    }}},
    {"arctn", {1, [] (const auto& arguments) {
        return std::atan(arguments.front());
    }}},
    {"angle", {2, [] (const auto& arguments) {
        return std::atan2(arguments.back(), arguments.front());
    }}},
    {"pow", {2, [] (const auto& arguments) {
        return std::pow(arguments.front(), arguments.back());
    }}},
    {"sqrt", {1, [] (const auto& arguments) {
        return std::sqrt(arguments.front());
    }}},
    {"exp", {1, [] (const auto& arguments) {
        return std::exp(arguments.front());
    }}},
    {"ln", {1, [] (const auto& arguments) {
        return std::log(arguments.front());
    }}},
    {"lg", {1, [] (const auto& arguments) {
        return std::log10(arguments.front());
    }}},
    {"abs", {1, [] (const auto& arguments) {
        return std::abs(arguments.front());
    }}},
};

template<typename streamable>
void stop(const int& code, std::ostream& stream, const streamable& message) {
    stream << message << '\n';
    std::exit(code);
}

parser::rule_parser::pointer make_parser() {
    const auto expression_dummy = parser::dummy();
    RULE(function_call) = "identifier"_t >> &"("_v >>
        -(expression_dummy >> *(&","_v >> expression_dummy))
    >> &")"_v;
    RULE(atom) = "number"_t
        | function_call
        | "identifier"_t
        | (&"("_v >> expression_dummy >> &")"_v);
    RULE(unary) = *("-"_v) >> atom;
    RULE(product) = unary >> *(("*"_v | "/"_v | "%"_v) >> unary);
    RULE(sum) = product >> *(("+"_v | "-"_v) >> product);
    expression_dummy->set_parser(sum);

    return sum;
}

const parser::ast_node_group& inspect_sequence(const parser::ast_node& ast) {
    return ast.children.front().children;
}

double evaluate_ast_node(
    const parser::ast_node& ast,
    const constant_group& constants,
    const function_group& functions
) {
    const auto evaluate_with_context = [&] (const auto& ast) {
        return evaluate_ast_node(ast, constants, functions);
    };

    if (ast.type == "number") {
        return std::stod(ast.value, nullptr);
    } else if (ast.type == "identifier") {
        try {
            return constants.at(ast.value);
        } catch (const std::out_of_range& exception) {
            throw unexpected_entity_exception<entity_type::constant>{
                parser::get_offset(ast)
            };
        }
    } else if (ast.type == "atom") {
        const auto type = (+parser::ast_node_type::sequence)._to_string();
        const auto first_child = ast.children.front().type == type
            ? inspect_sequence(ast).front()
            : ast.children.front();
        return evaluate_with_context(first_child);
    } else if (ast.type == "unary") {
        const auto result = evaluate_with_context(inspect_sequence(ast).back());
        const auto sign = (inspect_sequence(ast).size()-1) % 2 ? -1 : 1;
        return sign * result;
    } else if (ast.type == "function_call") {
        try {
            const auto name = inspect_sequence(ast).front().value;
            const auto arguments = inspect_sequence(ast)
                | ranges::view::drop(1)
                | ranges::view::transform([&] (const auto& ast) {
                    return evaluate_with_context(ast);
                });
            const auto function = functions.at(name);
            if (arguments.size() != function.arity) {
                throw exceptions::positional_exception{
                    fmt::format(
                        "function requires {:d} {:s}",
                        function.arity,
                        function.arity == 1 ? "argument" : "arguments"
                    ),
                    parser::get_offset(ast)
                };
            }

            return function.handler(arguments);
        } catch (const std::out_of_range& exception) {
            throw unexpected_entity_exception<entity_type::function>{
                parser::get_offset(ast)
            };
        }
    } else if (ast.type == "product" || ast.type == "sum") {
        const auto first_operand =
            evaluate_with_context(inspect_sequence(ast).front());
        const auto children_chunks = inspect_sequence(ast)
            | ranges::view::drop(1)
            | ranges::view::chunk(2)
            | ranges::view::transform([] (const auto& chunk) {
                return chunk | ranges::to_<parser::ast_node_group>();
            });
        return ranges::accumulate(
            children_chunks,
            first_operand,
            [&] (const auto& result, const auto& chunk) {
                const auto name = chunk.front().value;
                const auto second_operand = evaluate_with_context(chunk.back());
                return functions.at(name).handler({result, second_operand});
            }
        );
    } else {
        throw unexpected_entity_exception<entity_type::node>{parser::get_offset(ast)};
    }
}

std::runtime_error enrich_exception(
    const exceptions::positional_exception& exception,
    const std::string_view& code,
    const std::size_t& mark_length
) {
    const auto mark_offset = std::string(exception.offset, ' ');
    const auto mark = std::string(mark_length, '^');
    return std::runtime_error{fmt::format(
        "{:s}\n| \"{:s}\"\n|  {:s}{:s}",
        exception.what(),
        code,
        mark_offset,
        mark
    )};
}

int main(int argc, char* argv[]) try {
    const auto options = docopt::docopt(usage, {argv+1, argv+argc}, true);
    const auto expression = options.at("<expression>")
        ? options.at("<expression>").asString()
        : "";
    const auto code = options.at("--stdin").asBool()
        ? std::string{std::istreambuf_iterator<char>{std::cin}, {}}
        : expression;
    const auto enrich = options.at("--verbose").asBool()
        ? std::function{enrich_exception}
        : [] (
            const exceptions::positional_exception& exception,
            const std::string_view& code,
            const std::size_t& mark_length
        ) { return exception; };
    try {
        auto tokens = lexer::tokenize_all(lexemes, lexemes_exceptions, code);
        if (options.at("--target") == "tokens"s) {
            stop(EXIT_SUCCESS, std::cout, tokens);
        }

        const auto eoi = exceptions::entity_type::eoi;
        try {
            const auto ast = parser::parse_all(make_parser(), tokens);
            if (options.at("--target") == "cst"s) {
                stop(EXIT_SUCCESS, std::cout, ast);
            }

            auto buffer = std::ostringstream{};
            const auto precision = options.at("--precision")
                ? options.at("--precision").asLong()
                : std::numeric_limits<double>::max_digits10;
            const auto result = evaluate_ast_node(ast, constants, functions);
            buffer << std::setprecision(precision) << result;

            stop(EXIT_SUCCESS, std::cout, buffer.str());
        } catch (const exceptions::unexpected_entity_exception<eoi>& exception) {
            const auto offset = exception.offset == utilities::integral_infinity
                ? code.size()
                : exception.offset;
            throw exceptions::unexpected_entity_exception<eoi>{offset};
        } catch (const exceptions::positional_exception& exception) {
            const auto token = ranges::find_if(tokens, [&] (const auto& token) {
                return token.offset == exception.offset;
            });
            throw enrich(exception, code, token->value.size());
        }
    } catch (const exceptions::positional_exception& exception) {
        throw enrich(exception, code, 1);
    }
} catch (const std::exception& exception) {
    stop(EXIT_FAILURE, std::cerr, fmt::format("error: {:s}", exception.what()));
}

Репозиторий

Ссылка: https://github.com/thewizardplusplus/wizard-parser/tree/v4.3.

Содержание: код, документация, пример использования.

Лицензия:

  • кода — MIT;
  • документации — CC BY 4.0.

Скриншоты

Отображение ошибок в примере

Консольная справка в примере
