Wizard Parser, v3.0

LL(*)-парсер на C++ с поддержкой DSL для описания грамматики в EBNF непосредственно в коде программы.

Major release. Revision of errors handling, removing some possibilities and global refactoring.

Change Log

• Processing errors:
  • Add the universal exception for an unexpected entity.
  • Symplify processing an error:
    • with an unexpected symbol;
    • with an unexpected token;
    • with an unexpected EOI.
• Remove:
  • code entities:
    • header including all parsers;
    • functions:
      • function for repeating in a range of times;
      • overload of the parser::parse() function accepting a string;
    • operators:
      • for repeating an exact number of times;
      • for parsing separated lists;
  • possibilities:
    • ignoring some tokens;
    • auto-selection:
      • of longest token;
      • of longest node;
    • serialization to JSON:
      • from the lexer module;
      • from the parser module.
• Refactoring:
  • of the lexer module:
    • combine in a single file:
      • token and token_group types;
    • add new types:
      • lexeme_group type alias;
      • token_span type alias;
    • refactoring:
      • of the find_matched_token() function;
      • of the tokenize() function;
  • of the parser module:
    • simplify a code of parsers;
    • combine in a single file:
      • ast_node_flag and ast_node types;
      • parsing_result and rule_parser types;
      • match_type and match_parser types;
    • add new types:
      • ast_node_group type alias;
    • replace:
      • magic constants of AST node types to an enumeration;
      • custom bitwise operators for the ast_node_flag enumeration to using the grisumbras/enum-flags library;
      • mutable instances in parameters to constant references;
    • remove:
      • some C++ class specifiers;
      • usages of move semantics;
    • refactoring:
      • of the append_node() function;
      • of the repetition_parser::parse() method;
  • of the utilities module:
    • rename it to exceptions;
    • replace:
      • mutable instances in parameters to constant references;
    • remove:
      • usages of move semantics;
  • of the example:
    • combine in a single function:
      • make_atom_parser() and make_expression_parser() functions;
    • refactoring:
      • of the grammar;
      • of the main() function;
      • of the tests runner.

Возможности

• лексинг ASCII-текста:
  • задание лексем посредством регулярных выражений;
• парсинг ASCII-текста;
• описание грамматики на EBNF непосредственно в коде программы (посредством DSL);
• представление результата в виде AST;
• задание имени ноды в AST;
• комбинаторы:
  • следование;
  • упорядоченная альтернатива;
  • повторение:
    • 0 или 1 раз (опциональность);
    • 0 или больше раз;
    • 1 или больше раз;
  • исключение;
  • просмотр вперёд:
    • позитивный;
    • негативный;
• парсеры:
  • пустота;
  • конец текста;
  • определённый текст;
  • определённая лексема.

Пример использования

#include "vendor/json.hpp"
#include "vendor/docopt/docopt.hpp"
#include "vendor/fmt/format.hpp"
#include <thewizardplusplus/wizard_parser/lexer/lexeme.hpp>
#include <thewizardplusplus/wizard_parser/lexer/token.hpp>
#include <thewizardplusplus/wizard_parser/parser/ast_node.hpp>
#include <thewizardplusplus/wizard_parser/parser/rule_parser.hpp>
#include <thewizardplusplus/wizard_parser/parser/dummy_parser.hpp>
#include <thewizardplusplus/wizard_parser/parser/macroses.hpp>
#include <thewizardplusplus/wizard_parser/parser/match_parser.hpp>
#include <thewizardplusplus/wizard_parser/parser/alternation_parser.hpp>
#include <thewizardplusplus/wizard_parser/parser/exception_parser.hpp>
#include <thewizardplusplus/wizard_parser/parser/concatenation_parser.hpp>
#include <thewizardplusplus/wizard_parser/parser/lookahead_parser.hpp>
#include <thewizardplusplus/wizard_parser/parser/repetition_parser.hpp>
#include <thewizardplusplus/wizard_parser/parser/eoi_parser.hpp>
#include <thewizardplusplus/wizard_parser/lexer/tokenize.hpp>
#include <thewizardplusplus/wizard_parser/parser/parse.hpp>
#include <thewizardplusplus/wizard_parser/exceptions/unexpected_entity_exception.hpp>
#include <regex>
#include <iostream>
#include <string>
#include <iterator>
#include <algorithm>
#include <cstdlib>
#include <exception>

using namespace thewizardplusplus::wizard_parser::lexer;
using namespace thewizardplusplus::wizard_parser::parser;
using namespace thewizardplusplus::wizard_parser::parser::operators;
using namespace thewizardplusplus::wizard_parser::exceptions;

const auto usage =
R"(Usage:
  ./example -h | --help
  ./example [-t | --tokens] <expression>
  ./example [-t | --tokens] (-s | --stdin)

Options:
  -h, --help    - show this message;
  -t, --tokens  - show a token list instead an AST;
  -s, --stdin   - read an expression from stdin.)";
const auto lexemes = lexeme_group{
    {std::regex{"=="}, "equal"},
    {std::regex{"/="}, "not_equal"},
    {std::regex{"<="}, "less_or_equal"},
    {std::regex{"<"}, "less"},
    {std::regex{">="}, "great_or_equal"},
    {std::regex{">"}, "great"},
    {std::regex{R"(\+)"}, "plus"},
    {std::regex{"-"}, "minus"},
    {std::regex{R"(\*)"}, "star"},
    {std::regex{"/"}, "slash"},
    {std::regex{"%"}, "percent"},
    {std::regex{R"(\()"}, "opening_parenthesis"},
    {std::regex{R"(\))"}, "closing_parenthesis"},
    {std::regex{","}, "comma"},
    {std::regex{R"(\d+(?:\.\d+)?(?:e-?\d+)?)"}, "number"},
    {std::regex{R"([A-Za-z_]\w*)"}, "base_identifier"},
    {std::regex{R"(\s+)"}, "whitespace"}
};

namespace thewizardplusplus::wizard_parser {

namespace lexer {

void to_json(nlohmann::json& json, const token& some_token) {
    json = { { "type", some_token.type }, { "value", some_token.value } };
}

}

namespace parser {

void to_json(nlohmann::json& json, const ast_node& ast) {
    json = { { "type", ast.type } };
    if (!ast.value.empty()) {
        json["value"] = ast.value;
    }
    if (!ast.children.empty()) {
        json["children"] = ast.children;
    }
}

}

}

void stop(const int& code, std::ostream& stream, const std::string& message) {
    stream << fmt::format("{:s}\n", message);
    std::exit(code);
}

rule_parser::pointer make_parser() {
    const auto expression_dummy = dummy();
    RULE(number) = "number"_t;
    RULE(key_words) = "not"_v | "and"_v | "or"_v;
    RULE(identifier) = "base_identifier"_t - key_words;
    IMPORTANT_RULE(function_call) = identifier >> &"("_v >>
        -(expression_dummy >> *(&","_v >> expression_dummy))
    >> &")"_v;
    RULE(atom) = number
        | function_call
        | identifier
        | (&"("_v >> expression_dummy >> &")"_v);
    RULE(unary) = *("-"_v | "not"_v) >> atom;
    RULE(product) = unary >> *(("*"_v | "/"_v | "%"_v) >> unary);
    RULE(sum) = product >> *(("+"_v | "-"_v) >> product);
    RULE(comparison) = sum >> *(("<"_v | "<="_v | ">"_v | ">="_v) >> sum);
    RULE(equality) = comparison >> *(("=="_v | "/="_v) >> comparison);
    RULE(conjunction) = equality >> *(&"and"_v >> equality);
    RULE(disjunction) = conjunction >> *(&"or"_v >> conjunction);
    expression_dummy->set_parser(disjunction);

    RULE(expression) = disjunction >> eoi();
    return expression;
}

int main(int argc, char* argv[]) try {
    auto cleaned_tokens = token_group{};
    const auto options = docopt::docopt(usage, {argv+1, argv+argc}, true);
    const auto code = options.at("--stdin").asBool()
        ? std::string{std::istreambuf_iterator<char>{std::cin}, {}}
        : options.at("<expression>").asString();
    const auto tokens = tokenize(lexemes, code);
    std::copy_if(
        std::cbegin(tokens),
        std::cend(tokens),
        std::back_inserter(cleaned_tokens),
        [] (const auto& token) { return token.type != "whitespace"; }
    );
    if (options.at("--tokens").asBool()) {
        stop(EXIT_SUCCESS, std::cout, nlohmann::json(cleaned_tokens).dump());
    }

    const auto parser = make_parser();
    try {
        const auto ast = parse(parser, cleaned_tokens);
        stop(EXIT_SUCCESS, std::cout, nlohmann::json(ast).dump());
    } catch (const unexpected_entity_exception<entity_type::eoi>& exception) {
        throw decltype(exception){code.size()};
    }
} catch (const std::exception& exception) {
    stop(EXIT_FAILURE, std::cerr, fmt::format("error: {:s}", exception.what()));
}

Репозиторий

Ссылка: https://github.com/thewizardplusplus/wizard-parser/tree/v3.0.

Содержание: код, документация, пример использования.

Лицензия:

• кода — MIT;
• документации — CC BY 4.0.

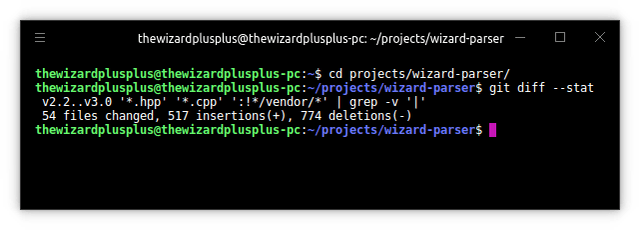

Скриншоты

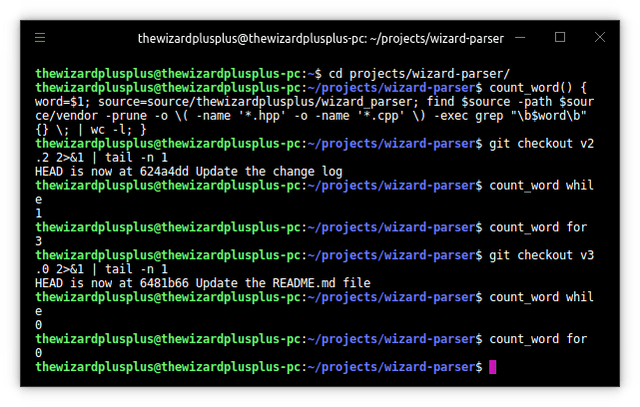

Количество циклов
