VK Group Stats, v1.1.0

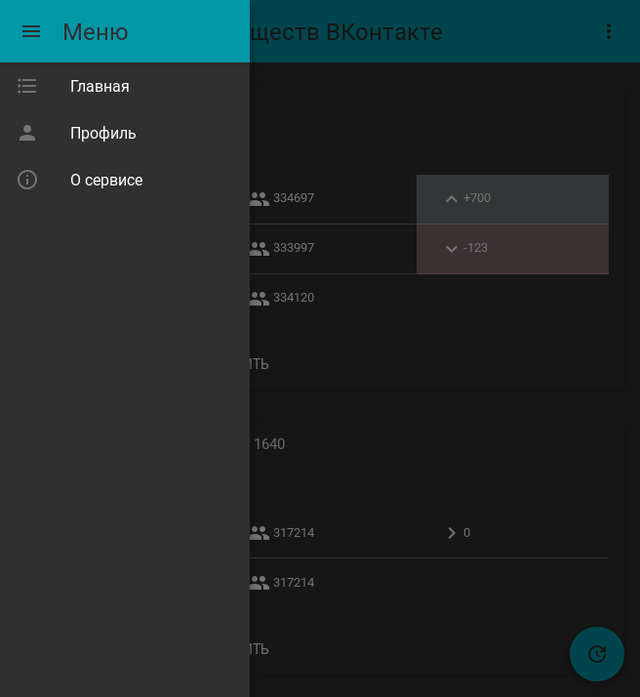

Side menu

Service for a collecting of a VK groups stats.

Split to pages, add an user profile, request additional counters.

Change Log

Closed issues:
- Force RU lang in VK API requests #38
- Request additional counters #37
- Support a requesting of an additional counter for a range #36
- Disable «Reload» and «Add group» menu items on not groups pages #35
- Add a profile update #34
- Add a profile view #33
- Add a profile page #32
- Update of new user fields on a login #31
- Support an update of new user fields #30
- Extend the user model: add a name, a screen name and a photo #29
- Add additional margins to single cards #28
- Move a login processing from the MainMenu component to the AppBar component #27
- Remove the about app dialog #25
- Add a side menu for a routes navigation #22
- Separate the about info to a single page #21
Fixed bugs:
- Use theme styles for the main menu button #24
- Use theme styles for the login button #23

Features

back-end:
- authentication:
  - an authentication via VK;
  - support of a skipping of an authentication;
- users:
  - data:
    - MongoDB ObjectId;
    - VK ID;
    - VK photo;
    - name (VK first name, VK nickname and VK last name separated by a whitespace symbol);
    - VK screen name;
  - operations:
    - getting of a current user;
    - update of a data via VK API;
    - automatically on an authentication:
      - addition;
      - update of a data via VK API;
  - support of a fake user on a skipping of an authentication;
- groups:
  - data:
    - MongoDB ObjectId;
    - user ObjectId;
    - VK photo;
    - VK name;
    - VK screen name;
  - operations (for a current user):
    - getting of all;
    - addition of one:
      - by VK screen name;
      - by VK URL;
    - update of one data via VK API;
    - deletion of one;
- counters:
  - data:
    - MongoDB ObjectId;
    - group ObjectId;
    - addition timestamp;
    - group members counter;
  - operations (for a specified group):
    - getting of all in a descending order;
    - getting of all in a descending order beginning with a specified timestamp;
    - getting of an additional counter after all requested counters;
    - addition of one via VK API;
    - deletion of all;
- automatically addition of counters via VK API for all added groups by schedule;
front-end:
- design:
  - adaptive;
  - material:
    - dark;
    - light;
- pages:
  - group list:
    - displays:
      - groups;
    - states:
      - fetching;
      - success;
      - failure;
    - for every group:
      - displays:

        VK photo;

        VK name;

        VK screen name;

        all counters for a last day and one additional counter after all rest;
      - states:

        fetching;

        success;

        failure;
      - for every counter:

        displays:

        timestamp;

        number of subscribers;

        delta compared to a previous (optionally);
    - add group dialog;
    - simultaneously for all groups:
      - reloading;
      - update;
  - user profile:
    - displays:
      - VK photo;
      - name (VK first name, VK nickname and VK last name separated by a whitespace symbol);
      - VK screen name;
      - VK ID (optionally);
    - states:
      - fetching;
      - success;
      - failure;
  - info about app;
- authentication:
  - login;
  - logout.

API

API description in the Swagger format:

swagger: '2.0'
info:
  title: vk-group-stats
  version: 1.1.0
basePath: /api/v1
schemes:
- http
- https
consumes:
- application/x-www-form-urlencoded
- application/json
produces:
- application/json
paths:
  /groups:
    get:
      responses:
        200:
          description: OK
          schema:
            type: object
            properties:
              data:
                type: array
                items:
                  $ref: '#/definitions/group'
            required:
            - data
        401:
          description: Unauthorized
          schema:
            $ref: '#/definitions/error'
        500:
          description: Internal Server Error
          schema:
            $ref: '#/definitions/error'
    post:
      parameters:
      - $ref: '#/parameters/group_form'
      responses:
        200:
          description: OK
          schema:
            type: object
            properties:
              data:
                type: object
                properties:
                  group:
                    $ref: '#/definitions/group'
                  counter:
                    $ref: '#/definitions/counter'
                required:
                - group
                - counter
            required:
            - data
        400:
          description: Bad Request
          schema:
            $ref: '#/definitions/error'
        401:
          description: Unauthorized
          schema:
            $ref: '#/definitions/error'
        500:
          description: Internal Server Error
          schema:
            $ref: '#/definitions/error'
  /groups/{group_id}:
    parameters:
    - $ref: '#/parameters/group_id'
    delete:
      responses:
        200:
          description: OK
          schema:
            $ref: '#/definitions/ok'
        400:
          description: Bad Request
          schema:
            $ref: '#/definitions/error'
        401:
          description: Unauthorized
          schema:
            $ref: '#/definitions/error'
        500:
          description: Internal Server Error
          schema:
            $ref: '#/definitions/error'

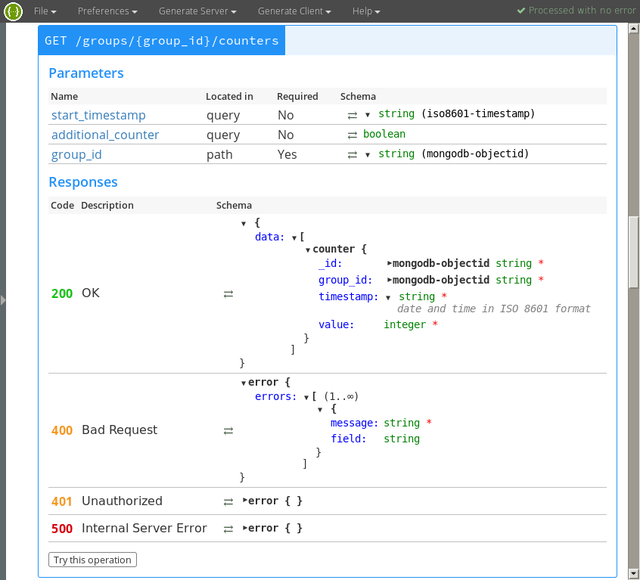

  /groups/{group_id}/counters:
    parameters:
    - $ref: '#/parameters/group_id'
    get:
      parameters:
      - $ref: '#/parameters/start_timestamp'
      - $ref: '#/parameters/additional_counter'
      responses:
        200:
          description: OK
          schema:
            type: object
            properties:
              data:
                type: array
                items:
                  $ref: '#/definitions/counter'
            required:
            - data
        400:
          description: Bad Request
          schema:
            $ref: '#/definitions/error'
        401:
          description: Unauthorized
          schema:
            $ref: '#/definitions/error'
        500:
          description: Internal Server Error
          schema:
            $ref: '#/definitions/error'
    post:
      responses:
        200:
          description: OK
          schema:
            type: object
            properties:
              data:
                type: object
                properties:
                  group:
                    $ref: '#/definitions/group'
                  counter:
                    $ref: '#/definitions/counter'
                required:
                - group
                - counter
            required:
            - data
        400:
          description: Bad Request
          schema:
            $ref: '#/definitions/error'
        401:
          description: Unauthorized
          schema:
            $ref: '#/definitions/error'
        500:
          description: Internal Server Error
          schema:
            $ref: '#/definitions/error'

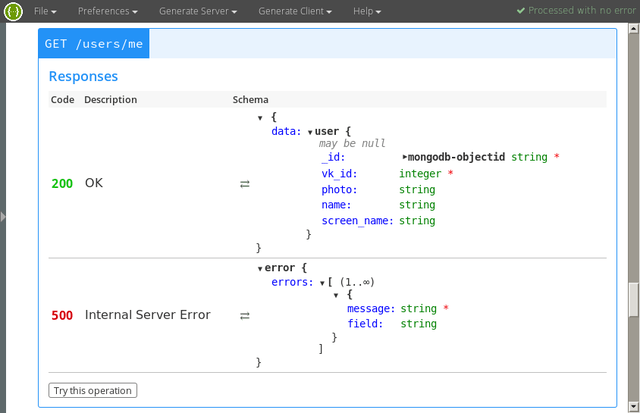

  /users/me:
    get:
      responses:
        200:
          description: OK
          schema:
            type: object
            properties:
              data:
                $ref: '#/definitions/user'
            required:
            - data
        500:
          description: Internal Server Error
          schema:
            $ref: '#/definitions/error'

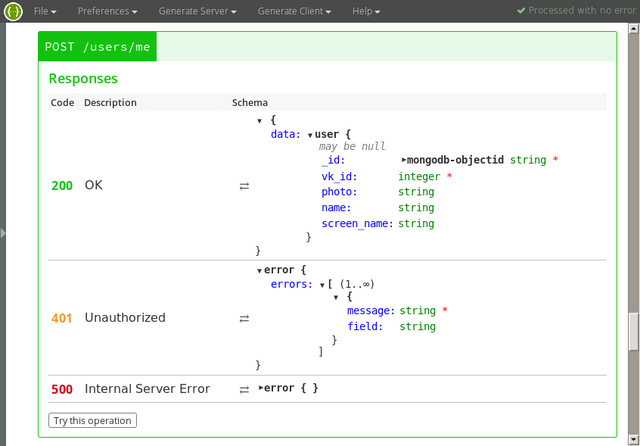

    post:
      responses:
        200:
          description: OK
          schema:
            type: object
            properties:
              data:
                $ref: '#/definitions/user'
            required:
            - data
        401:
          description: Unauthorized
          schema:
            $ref: '#/definitions/error'
        500:
          description: Internal Server Error
          schema:
            $ref: '#/definitions/error'
parameters:
  group_id:
    name: group_id
    in: path
    required: true
    type: string
    format: mongodb-objectid
    pattern: ^[0-9A-Fa-f]+$
    minLength: 24
    maxLength: 24
  group_form:
    name: body
    in: body
    required: true
    schema:
      $ref: '#/definitions/group_form'
  start_timestamp:
    name: start_timestamp
    in: query
    type: string
    format: iso8601-timestamp
    pattern: ^\d{4}-\d{2}-\d{2}T\d{2}:\d{2}:\d{2}Z$
  additional_counter:
    name: additional_counter
    in: query
    type: boolean
definitions:
  group_form:
    type: object
    properties:
      screen_name:
        type: string
    required:
    - screen_name
  group:
    type: object
    properties:
      _id:
        $ref: '#/definitions/mongodb-objectid'
      user_id:
        $ref: '#/definitions/mongodb-objectid'
      photo:
        type: string
      name:
        type: string
      screen_name:
        type: string
    required:
    - _id
    - user_id
    - screen_name
  counter:
    type: object
    properties:
      _id:
        $ref: '#/definitions/mongodb-objectid'
      group_id:
        $ref: '#/definitions/mongodb-objectid'
      timestamp:
        type: string
        description: date and time in ISO 8601 format
        pattern: ^\d{4}-\d{2}-\d{2}T\d{2}:\d{2}:\d{2}.\d{3}Z$
      value:
        type: integer
        minimum: 0
    required:
    - _id
    - group_id
    - timestamp
    - value
  user:
    type: object
    description: may be null
    properties:
      _id:
        $ref: '#/definitions/mongodb-objectid'
      vk_id:
        type: integer
        minimum: 0
      photo:
        type: string
      name:
        type: string
      screen_name:
        type: string
    required:
    - _id
    - vk_id
  ok:
    type: object
    properties:
      data:
        type: boolean
        description: always true
    required:
    - data
  error:
    type: object
    properties:
      errors:
        type: array
        minItems: 1
        items:
          type: object
          properties:
            message:
              type: string
            field:
              type: string
          required:
          - message
    required:
    - errors
  mongodb-objectid:
    type: string
    pattern: ^[0-9A-Fa-f]+$
    minLength: 24
    maxLength: 24

Redux state

Redux state in the JSON Schema format:

{
  "type": "object",
  "properties": {
    "login": {
      "type": "object",
      "properties": {
        "state": {
          "$ref": "#/definitions/state"
        },
        "isLogged": {
          "type": "boolean"
        },
        "user": {
          "type": "object",
          "properties": {
            "state": {
              "$ref": "#/definitions/state"
            },
            "data": {
              "$ref": "#/definitions/user"
            }
          },
          "required": [
            "state",
            "data"
          ]
        }
      },
      "required": [
        "state",
        "isLogged"
      ]
    },
    "sideMenu": {
      "$ref": "#/definitions/openable"
    },
    "groupDialog": {
      "$ref": "#/definitions/openable"
    },
    "groups": {
      "type": "object",
      "properties": {
        "state": {
          "$ref": "#/definitions/state"
        },
        "items": {
          "type": "array",
          "items": {
            "type": "object",
            "properties": {
              "state": {
                "$ref": "#/definitions/state"
              },
              "data": {
                "$ref": "#/definitions/group"
              },
              "counters": {
                "type": "object",
                "properties": {
                  "state": {
                    "$ref": "#/definitions/state"
                  },
                  "items": {
                    "type": "array",
                    "items": {
                      "$ref": "#/definitions/counter"
                    }
                  }
                },
                "required": [
                  "state",
                  "items"
                ]
              }
            },
            "required": [
              "state",
              "data",
              "counters"
            ]
          }
        }
      },
      "required": [
        "state",
        "items"
      ]
    }
  },
  "required": [
    "login",
    "sideMenu",
    "groupDialog",
    "groups"
  ],
  "definitions": {
    "openable": {
      "type": "object",
      "properties": {
        "open": {
          "type": "boolean"
        }
      },
      "required": [
        "open"
      ]
    },
    "state": {
      "type": "string",
      "enum": [
        "fetching",
        "success",
        "failure"
      ],
      "default": "success"
    },
    "group": {
      "type": "object",
      "properties": {
        "_id": {
          "$ref": "#/definitions/mongodb-objectid"
        },
        "photo": {
          "type": "string"
        },
        "name": {
          "type": "string"
        },
        "screen_name": {
          "type": "string"
        }
      },
      "required": [
        "_id",
        "screen_name"
      ]
    },
    "counter": {
      "type": "object",
      "properties": {
        "_id": {
          "$ref": "#/definitions/mongodb-objectid"
        },
        "timestamp": {
          "type": "string",
          "pattern": "^\\d{4}-\\d{2}-\\d{2}T\\d{2}:\\d{2}:\\d{2}.\\d{3}Z$"
        },
        "value": {
          "$ref": "#/definitions/positive-integer"
        },
        "delta": {
          "type": "integer"
        }
      },
      "required": [
        "_id",
        "timestamp",
        "value"
      ]
    },
    "user": {
      "type": "object",
      "properties": {
        "_id": {
          "$ref": "#/definitions/mongodb-objectid"
        },
        "vk_id": {
          "$ref": "#/definitions/positive-integer"
        },
        "photo": {
          "type": "string"
        },
        "name": {
          "type": "string"
        },
        "screen_name": {
          "type": "string"
        }
      },
      "required": [
        "_id",
        "vk_id"
      ]
    },
    "mongodb-objectid": {
      "type": "string",
      "pattern": "^[0-9A-Fa-f]+$",
      "minLength": 24,
      "maxLength": 24
    },
    "positive-integer": {
      "type": "integer",
      "minimum": 0
    }
  }
}
