Romani Mind, v0.1

Web service for a handling of a business logic of conversations.

Implement an interface as a RESTful API.

Features

• working mode:
  • run as a web service;
  • control via the RESTful API;
• commands:
  • handle a part of a history of a thread with an user:
    • request data:
      • list of messages;
      • user info;
      • arbitrary auxiliary data;
    • response data:
      • list of messages;
      • probably updated arbitrary auxiliary data.

Command

Command format in the JSON Schema format:

{
  "type": "object",
  "required": ["messages", "user", "state"],
  "additionalProperties": false,
  "properties": {
    "messages": {
      "type": "array",
      "items": {
        "type": "object",
        "required": ["id", "type", "timestamp", "text"],
        "additionalProperties": false,
        "properties": {
          "id": {"$ref": "#/definitions/numeric_string"},
          "type": {"type": "string", "pattern": "^[a-z_]+$"},
          "timestamp": {"$ref": "#/definitions/numeric_string"},
          "text": {"type": "string"}
        }
      }
    },
    "user": {
      "type": "object",
      "required": [
        "id",
        "category",
        "username",
        "full_name",
        "gender",
        "birthday",
        "biography",
        "location",
        "counters",
        "flags"
      ],
      "additionalProperties": false,
      "properties": {
        "id": {"$ref": "#/definitions/numeric_string"},
        "category": {"type": "string"},
        "username": {"type": "string"},
        "full_name": {"type": "string"},
        "gender": {"type": "integer"},
        "birthday": {"type": "string"},
        "biography": {"type": "string"},
        "location": {
          "type": "object",
          "required": ["geo", "address"],
          "additionalProperties": false,
          "properties": {
            "geo": {
              "type": "object",
              "required": ["latitude", "longitude"],
              "additionalProperties": false,
              "properties": {
                "latitude": {"type": "number"},
                "longitude": {"type": "number"}
              }
            },
            "address": {
              "type": "object",
              "required": ["street", "city", "zip", "country_code"],
              "additionalProperties": false,
              "properties": {
                "street": {"type": "string"},
                "city": {"type": "string"},
                "zip": {"type": "string"},
                "country_code": {"type": "integer"}
              }
            }
          }
        },
        "counters": {
          "type": "object",
          "required": ["media", "followers", "followings"],
          "additionalProperties": false,
          "properties": {
            "media": {"type": "integer"},
            "followers": {"type": "integer"},
            "followings": {"type": "integer"}
          }
        },
        "flags": {
          "type": "object",
          "required": ["is_private", "is_business", "is_verified"],
          "additionalProperties": false,
          "properties": {
            "is_private": {"type": "boolean"},
            "is_business": {"type": "boolean"},
            "is_verified": {"type": "boolean"}
          }
        }
      }
    },
    "state": {}
  },
  "definitions": {"numeric_string": {"type": "string", "pattern": "^\\d+$"}}
}

Example:

{
  "messages": [
    {
      "id": "28026277175418219105553115011612672",
      "type": "text",
      "timestamp": "1519307530013467",
      "text": "тест"
    },
    {
      "id": "28026277234757336506980526458929152",
      "type": "text",
      "timestamp": "1519307533230247",
      "text": "тест два"
    },
    {
      "id": "28026277284889112092153215698599936",
      "type": "text",
      "timestamp": "1519307535947896",
      "text": "тест три"
    }
  ],
  "user": {
    "id": "1599620166",
    "category": "Blogger",
    "username": "_iren.ica_",
    "full_name": "Irenica",
    "gender": 0,
    "birthday": "",
    "biography": "Задротка. http://msk-metro.ru",
    "location": {
      "geo": {
        "latitude": 0,
        "longitude": 0
      },
      "address": {
        "street": "",
        "city": "",
        "zip": "",
        "country_code": 0
      }
    },
    "counters": {
      "media": 569,
      "followers": 6061,
      "followings": 83
    },
    "flags": {
      "is_private": false,
      "is_business": true,
      "is_verified": false
    }
  },
  "state": null
}

API

API description in the Swagger format:

openapi: '3.0.0'
info:
  title: romani-mind
  version: 0.1.0
servers:
- url: http://localhost:{port}/api/v1
  variables:
    port:
      default: '7070'
paths:
  /history:
    post:
      requestBody:
        required: true
        content:
          application/json:
            schema:
              $ref: '#/components/schemas/request'
      responses:
        200:
          description: OK
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/response'
        400:
          $ref: '#/components/responses/error'
        404:
          $ref: '#/components/responses/error'
        405:
          $ref: '#/components/responses/error'
        500:
          $ref: '#/components/responses/error'
components:
  schemas:
    numeric_string:
      type: string
      pattern: ^\\d+$
    request_message:
      type: object
      required:
      - id
      - type
      - timestamp
      - text
      properties:
        id:
          $ref: '#/components/schemas/numeric_string'
        type:
          type: string
          pattern: ^[a-z_]+$
        timestamp:
          $ref: '#/components/schemas/numeric_string'
        text:
          type: string
    geo:
      type: object
      required:
      - latitude
      - longitude
      properties:
        latitude:
          type: number
        longitude:
          type: number
    address:
      type: object
      required:
      - street
      - city
      - zip
      - country_code
      properties:
        street:
          type: string
        city:
          type: string
        zip:
          type: string
        country_code:
          type: integer
    location:
      type: object
      required:
      - geo
      - address
      properties:
        geo:
          $ref: '#/components/schemas/geo'
        address:
          $ref: '#/components/schemas/address'
    user:
      type: object
      required:
      - id
      - category
      - username
      - full_name
      - gender
      - birthday
      - biography
      - location
      - counters
      - flags
      properties:
        id:
          $ref: '#/components/schemas/numeric_string'
        category:
          type: string
        username:
          type: string
        full_name:
          type: string
        gender:
          type: integer
        birthday:
          type: string
        biography:
          type: string
        location:
          $ref: '#/components/schemas/location'
        counters:
          type: object
          required:
          - media
          - followers
          - followings
          properties:
            media:
              type: integer
            followers:
              type: integer
            followings:
              type: integer
        flags:
          type: object
          required:
          - is_private
          - is_business
          - is_verified
          properties:
            is_private:
              type: boolean
            is_business:
              type: boolean
            is_verified:
              type: boolean
    request:
      type: object
      required:
      - messages
      - user
      - state
      properties:
        messages:
          type: array
          items:
            $ref: '#/components/schemas/request_message'
        user:
          $ref: '#/components/schemas/user'
        state:
          type: object
          nullable: true
    response_message:
      type: object
      oneOf:
      - required:
        - type
        - message
        properties:
          type:
            type: string
            enum:
            - message
          message:
            type: string
      - required:
        - type
        - filename
        properties:
          type:
            type: string
            enum:
            - photo
          filename:
            type: string
    response:
      type: object
      required:
      - messages
      - state
      properties:
        messages:
          type: array
          items:
            $ref: '#/components/schemas/response_message'
        state:
          type: object
          nullable: true
  responses:
    error:
      description: Some Error
      content:
        text/plain:
          schema:
            type: string

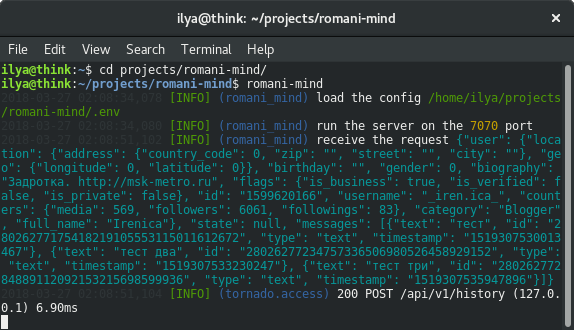

Screenshots

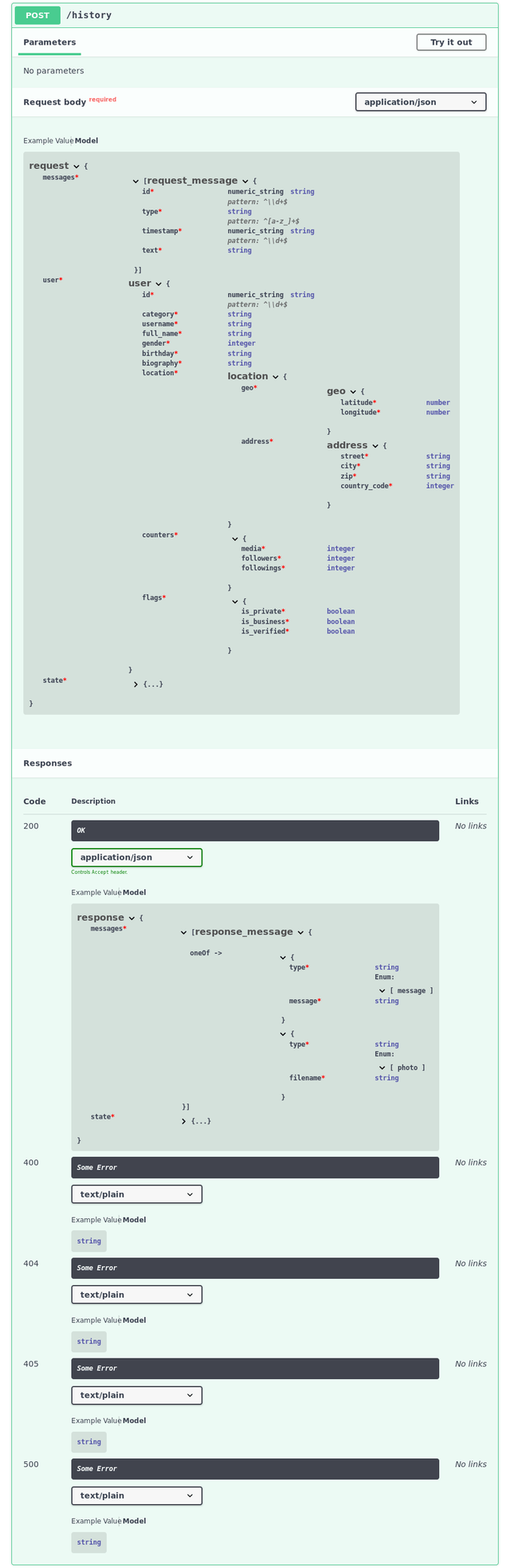

POST /history
