Romani Gate, v1.0

Web service for an interaction with the Instagram* Direct API.

Major release.



* Запрещена в России / Banned in Russia.

Features

• log in a bot account;
• working mode:
  • run as a web service;
  • control via the JSON-RPC like API;
• commands:
  • send a text message to a specified user;
  • send a link message to a specified user:
    • automatic extract links from a message body;
  • read a history of a thread with a specified user:
    • automatic detect a thread ID;
    • support a pagination of a history;
    • filter a history by a specified user;
    • restrict a history by a specified message ID;
    • automatic extract a text from a link message.

Commands

General Command

General command format in the JSON Schema format:

{
  "type": "object",
  "required": ["name", "parameters"],
  "additionalProperties": false,
  "properties": {
    "name": {"type": "string", "enum": ["send_message", "get_thread_history"]},
    "parameters": {
      "type": "object",
      "additionalProperties": false,
      "patternProperties": {".+": {}}
    }
  }
}

Send Message Command

Send message command format in the JSON Schema format:

{
  "type": "object",
  "required": ["name", "parameters"],
  "additionalProperties": false,
  "properties": {
    "name": {"type": "string", "enum": ["send_message"]},
    "parameters": {
      "type": "object",
      "required": ["user_id", "message"],
      "additionalProperties": false,
      "properties": {
        "user_id": {"type": "string", "pattern": "^\\d+$"},
        "message": {"type": "string", "minLength": 1}
      }
    }
  }
}

Example:

{
  "name": "send_message",
  "parameters": {"user_id": "1599620166", "message": "test"}
}

Get Thread History Command

Get thread history command format in the JSON Schema format:

{
  "type": "object",
  "required": ["name", "parameters"],
  "additionalProperties": false,
  "properties": {
    "name": {"type": "string", "enum": ["get_thread_history"]},
    "parameters": {
      "type": "object",
      "required": ["user_id", "minimal_cursor_id"],
      "additionalProperties": false,
      "properties": {
        "user_id": {"$ref": "#/definitions/id"},
        "minimal_cursor_id": {"oneOf": [
          {"type": "null"},
          {"$ref": "#/definitions/id"}
        ]}
      }
    }
  },
  "definitions": {"id": {"type": "string", "pattern": "^\\d+$"}}
}

Example:

{
  "name": "get_thread_history",
  "parameters": {"user_id": "1599620166", "minimal_cursor_id": null}
}

API

API description in the Swagger format:

openapi: '3.0.0'
info:
  title: romani-gate
  version: 1.0.0
servers:
- url: http://localhost:{port}
  variables:
    port:
      default: '8080'
paths:
  /:
    post:
      requestBody:
        required: true
        content:
          application/json:
            schema:
              $ref: '#/components/schemas/command'
      responses:
        200:
          description: OK
          content:
            application/json:
              schema:
                type: object
                oneOf:
                - $ref: '#/components/schemas/message'
                - $ref: '#/components/schemas/history'
        400:
          $ref: '#/components/responses/error'
        405:
          $ref: '#/components/responses/error'
        500:
          $ref: '#/components/responses/error'
components:
  schemas:
    numeric_string:
      type: string
      pattern: ^\\d+$
    alphabetical_string:
      type: string
      pattern: ^[a-z_]+$
    command:
      type: object
      required:
      - name
      - parameters
      properties:
        name:
          $ref: '#/components/schemas/alphabetical_string'
        parameters:
          type: object
    message:
      type: object
      required:
      - id
      - timestamp
      properties:
        id:
          $ref: '#/components/schemas/numeric_string'
        type:
          $ref: '#/components/schemas/alphabetical_string'
        timestamp:
          $ref: '#/components/schemas/numeric_string'
        text:
          type: string
          nullable: true
    history:
      type: array
      items:
        $ref: '#/components/schemas/message'
  responses:
    error:
      description: Some Error
      content:
        text/plain:
          schema:
            type: string

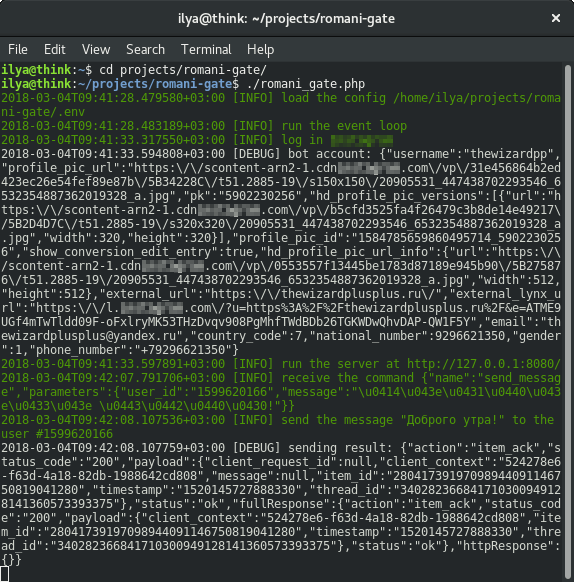

Screenshots

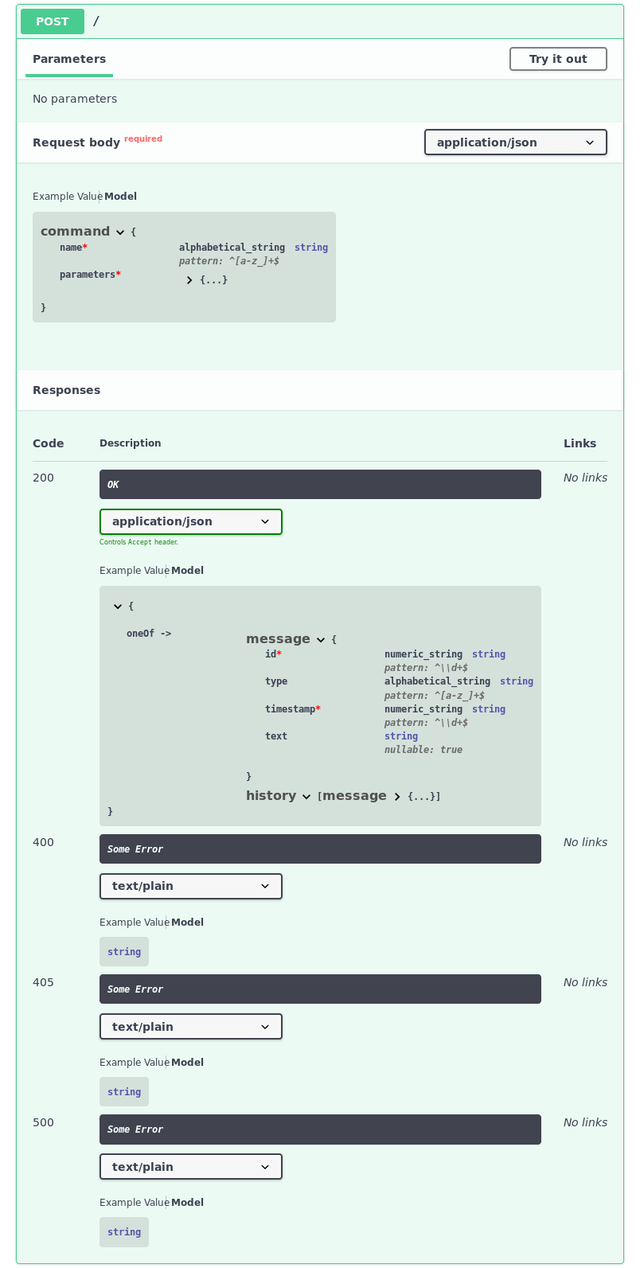

POST /
