Romani Core, v1.1

Extendable web service for a running of conversations via Instagram* Direct.

Special processing of a conversation start, an optimization of the conversation processing, a removing of inactive conversations and an improvement of an interaction with outer APIs and the documentation.



* Запрещена в России / Banned in Russia.

Change Log

• Service API:
  • Add a stuff for the Postman tool.
  • Removing of inactive conversations:
    • Store in a database a timestamp:
      • of a creation of a conversation;
      • of a last message of a conversation.
    • Add an API endpoint for a removing of inactive conversations:
      • detect them by a timestamp:
        • of their creation;
        • of their last messages.
• Outer APIs:
  • Return an empty history for a nonexistent thread instead an error.
  • Make different types of timestamp fields same in:
    • Romani Gate commands:
      • sending of a text message to a specified user;
      • sending of a link message to a specified user;
      • sending of a photo message to a specified user;
      • reading of a history of a thread with a specified user;
    • Romani Mind commands:
      • handling of a part of a history of a thread with an user.
• Conversation business logic:
  • Process conversations concurrently.
  • Start of a conversation:
    • Store a flag of a start of a conversation.
    • Process an empty history only on a start of a conversation.

Features

• working mode:
  • run as a web service;
  • control via the RESTful API;
• RESTful API commands:
  • start a conversation with a specified user:
    • collect users in a database (SQLite);
    • protect against duplicate users;
  • remove inactive conversations:
    • detect them by a timestamp:
      • of their creation;
      • of their last messages;
• Romani Gate commands:
  • send a text message to a specified user;
  • send a link message to a specified user;
  • send a photo message to a specified user;
  • read an info of a specified user;
  • read a history of a thread with a specified user:
    • automatic detect a thread ID;
    • support a pagination of a history;
    • restrict a history by a specified message ID;
• Romani Mind commands:
  • handle a part of a history of a thread with an user;
• conversation business logic:
  • for each user in a database repeat following steps:
    1. get an input data:
       • via Romani Gate:
         • user info;
         • new user messages;
       • from the database:
         • auxiliary data;
    2. process the gotten data via Romani Mind;
    3. save the auxiliary data from Romani Mind to the database;
    4. send a response from Romani Mind to the user via Romani Gate.

Architecture

UML component diagram in the PlantUML language:

@startuml
skinparam componentStyle uml2

cloud {
  () "Romani Gate API" as RomaniGateAPI
}

cloud {
  () "Romani Mind API" as RomaniMindAPI
}

package "Romani Core" {
  database "SQLite" {
    [Conversations]
  }

  [Web Server] -up- API
  [Web Server] .down.> [Conversations] : add an user
  [Web Server] .down.> [Conversations] : remove inactive conversations

  [Conversation Loop] .up.> [Conversations] : scan conversations
  [Conversation Loop] .up.> [Conversations] : update conversation

  [Conversation Loop] .down.> RomaniGateAPI : get_user
  [Conversation Loop] .down.> RomaniGateAPI : get_thread
  [Conversation Loop] .down.> RomaniGateAPI : get_thread_history
  [Conversation Loop] .down.> RomaniGateAPI : send_message
  [Conversation Loop] .down.> RomaniGateAPI : send_photo

  [Conversation Loop] .down.> RomaniMindAPI : history
}

[Romani Bot] .down.> API : POST /conversations
[cron + cURL] .down.> API : DELETE /conversations

@enduml

Rendered UML component diagram:

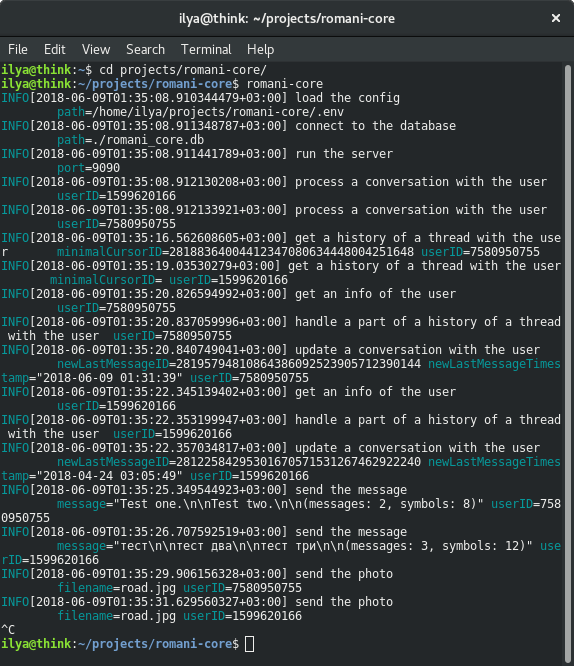

Screenshots

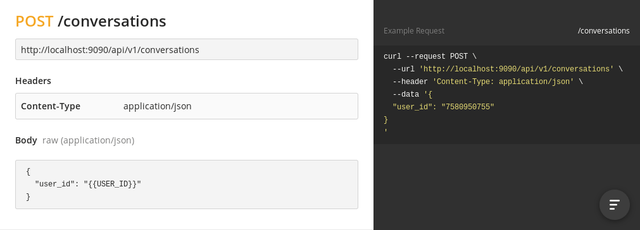

POST /conversations endpoint in the Postman tool

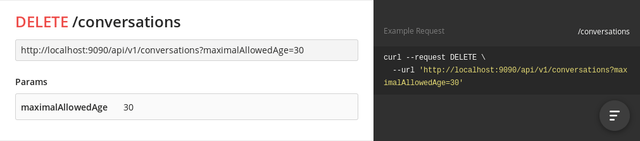

DELETE /conversations endpoint in the Postman tool
