Romani Core, v1.0

Posted on

Extendable web service for a running of conversations via Instagram* Direct.

Major release. Implement the conversation business logic.



* Запрещена в России / Banned in Russia.

Change Log

  • Extend the conversation data model:
    • Extend the database schema of the conversation data model.
    • Describe the conversation data model in the code.
    • Support an update of a conversation in a database.
  • Implement the conversation business logic:
    • Support an iteration over conversations in a database.
    • Implement one step of a conversation.
    • Implement a loop of a conversation.

Features

  • working mode:
    • run as a web service;
    • control via the RESTful API;
  • RESTful API commands:
    • start a conversation with a specified user:
      • collect users in a database (SQLite);
      • protect against duplicate users;
  • Romani Gate commands:
    • send a text message to a specified user;
    • send a link message to a specified user;
    • send a photo message to a specified user;
    • read an info of a specified user;
    • read a history of a thread with a specified user:
      • automatic detect a thread ID;
      • support a pagination of a history;
      • restrict a history by a specified message ID;
  • Romani Mind commands:
    • handle a part of a history of a thread with an user;
  • conversation business logic:
    • for each user in a database repeat following steps:
      1. get an input data:
        • via Romani Gate:
          • user info;
          • new user messages;
        • from the database:
          • auxiliary data;
      2. process the gotten data via Romani Mind;
      3. save the auxiliary data from Romani Mind to the database;
      4. send a response from Romani Mind to the user via Romani Gate.

Architecture

UML component diagram in the PlantUML language:

@startuml
skinparam componentStyle uml2

cloud {
  () "Romani Gate API" as RomaniGateAPI
}

cloud {
  () "Romani Mind API" as RomaniMindAPI
}

package "Romani Core" {
  database "SQLite" {
    [Conversations]
  }

  [Web Server] -up- API
  [Web Server] .down.> [Conversations] : add an user

  [Conversation Loop] .up.> [Conversations] : scan conversations
  [Conversation Loop] .up.> [Conversations] : update conversation

  [Conversation Loop] .down.> RomaniGateAPI : get_user
  [Conversation Loop] .down.> RomaniGateAPI : get_thread
  [Conversation Loop] .down.> RomaniGateAPI : get_thread_history
  [Conversation Loop] .down.> RomaniGateAPI : send_message
  [Conversation Loop] .down.> RomaniGateAPI : send_photo

  [Conversation Loop] .down.> RomaniMindAPI : history
}

[Romani Bot] .down.> API : POST /conversations

@enduml

Rendered UML component diagram:

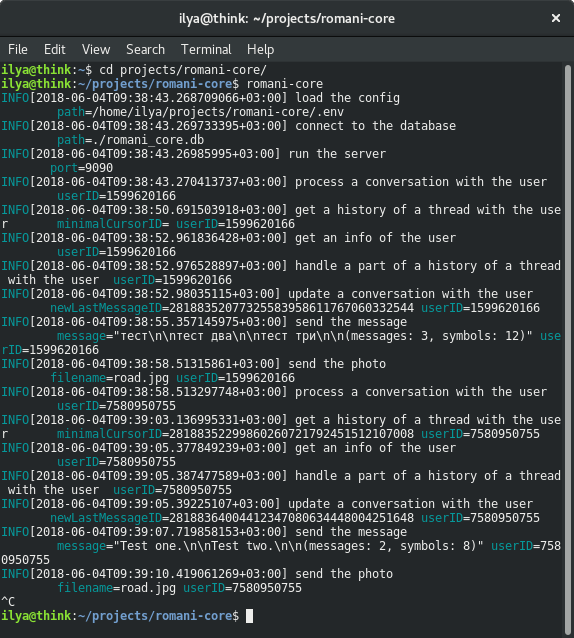

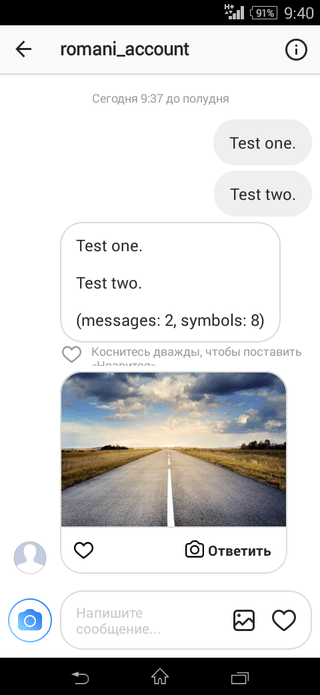

Screenshots
