Romani Core, v0.1

Extendable web service for a running of conversations via Instagram* Direct.

Implement a controlling RESTful API for an addition of users.



* Запрещена в России / Banned in Russia.

Features

• working mode:
  • run as a web service;
  • control via the RESTful API;
• commands:
  • start a conversation with a specified user:
    • collect users in a database (SQLite);
    • protect against duplicate users.

Command

Command format in the JSON Schema format:

{
  "type": "object",
  "required": ["user_id"],
  "additionalProperties": false,
  "properties": {"user_id": {"type": "string", "pattern": "^\\d+$"}}
}

Example:

{"user_id": "1599620166"}

API

API description in the Swagger format:

openapi: '3.0.0'
info:
  title: romani-gate
  version: 0.1.0
servers:
- url: http://localhost:{port}/api/v1
  variables:
    port:
      default: '9090'
paths:
  /conversations:
    post:
      requestBody:
        required: true
        content:
          application/json:
            schema:
              $ref: '#/components/schemas/command'
      responses:
        200:
          $ref: '#/components/responses/response'
        400:
          $ref: '#/components/responses/response'
        404:
          $ref: '#/components/responses/response'
        405:
          $ref: '#/components/responses/response'
        500:
          $ref: '#/components/responses/response'
components:
  schemas:
    command:
      type: object
      required:
      - user_id
      additionalProperties: false
      properties:
        user_id:
          type: string
          pattern: ^\\d+$
  responses:
    response:
      description: Some Response
      content:
        text/plain:
          schema:
            type: string

Architecture

UML component diagram in the PlantUML language:

@startuml
skinparam componentStyle uml2

package "Romani Core" {
  database "SQLite" {
    [Conversations]
  }

  [Web Server] -- API
  [Web Server] ..> [Conversations] : add an user
}

@enduml

Rendered UML component diagram:

Screenshots

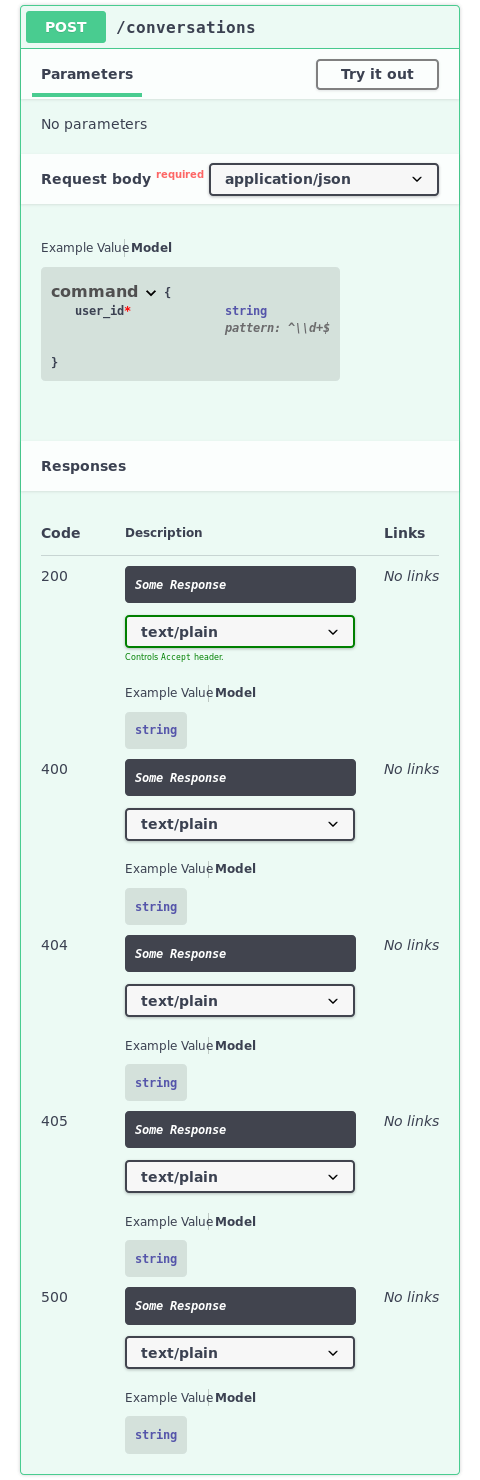

POST /conversations
