Robot Clock, v1.0.0
Posted on

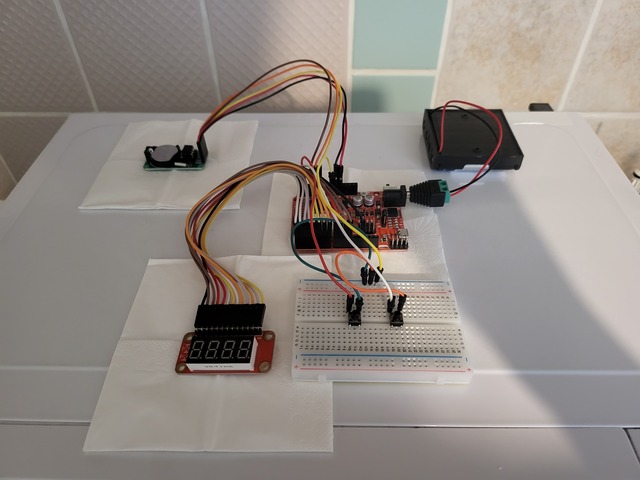

The electronic clock.
Major version.
Features
- display the current time (hours and minutes only);
- working modes:
- time counting;
- hours setting;
- minutes setting;
- components:
- time counting is made through the DS1302 RTC chip;
- time displaying is made through the multiplexed LED display consisting of four 7-segment sub-displays;
- controls:
- working mode switching is made by a separate button;
- hours and minutes incrementing is made by a separate button;
- displaying:
- display a blinking separator between hours and minutes;
- displaying on setting:
- additionally display blinking hours on their setting;
- additionally display blinking minutes on their setting.
