go-atari-cli, v1.2

The Atari Go program with a terminal-based interface.

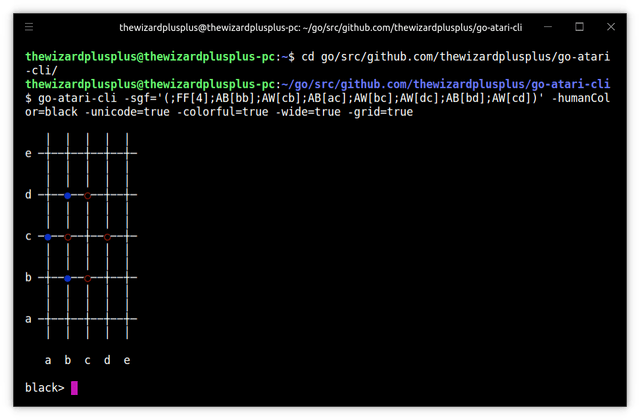

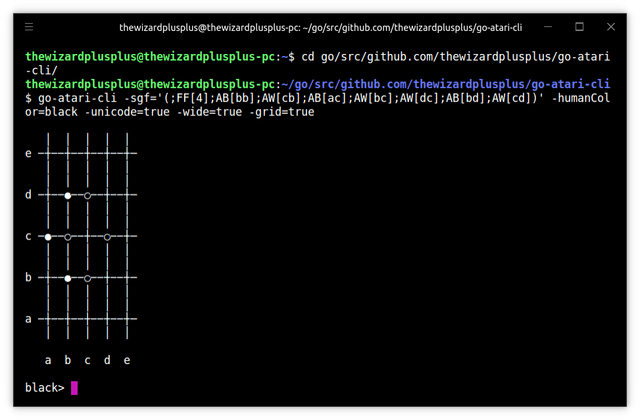

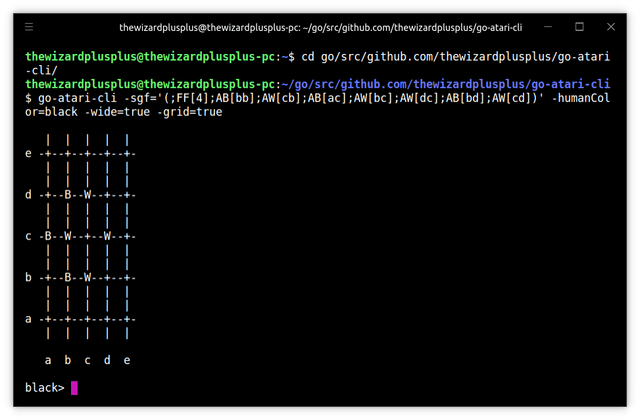

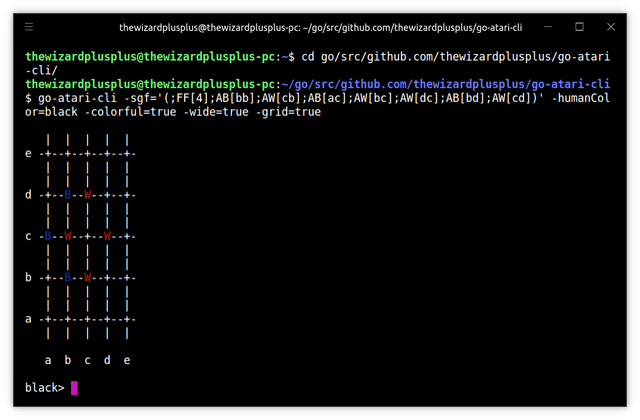

Displaying a board with the grid (optional).

Change Log

displaying a board:
- changing ASCII symbols for stones displaying;
- by decor (to choose):
  - without the board grid;
  - with the board grid.

Features

displaying a board:
- by symbols (to choose):
  - ASCII;
  - Unicode;
- by colors (to choose):
  - monochrome;
  - colorful;
- by size (to choose):
  - terse;
  - wide;
- by decor (to choose):
  - without the board grid;
  - with the board grid;
- misc.:
  - marking searching process;
interacting via text commands (moves in Smart Game Format);
options:
- initial position in Smart Game Format;
- human color (i.e. a computer can move first):
  - support automatic random selecting (optional);
- move searching restrictions:
  - passes of tree building;
  - duration of tree building;
- optimization via parallel move searching:
  - parallel game simulating:
    - of a single node child;
    - of all node children;
  - parallel tree building;
- displaying:
  - switching between ASCII/Unicode modes;
  - switching between monochrome/colorful modes;
  - switching between terse/wide modes;
  - switching between modes without/with the board grid.

Usage

$ go-atari-cli -h | -help | --help
$ go-atari-cli [options]

Options:

-h, -help, --help — show the help message and exit;
-sgf STRING — board in Smart Game Format (default: empty board 5x5);
-humanColor {random|black|white} — human color (default: random);
-pass INTEGER — building passes (default: 1000);
-duration DURATION — building duration (e.g. 72h3m0.5s; default: 10s);
-parallelSimulator — use parallel game simulating of a single node child (default: false; for inverting use -parallelSimulator or -parallelSimulator=true);
-parallelBulkySimulator — use parallel game simulating of all node children (default: false; for inverting use -parallelBulkySimulator or -parallelBulkySimulator=true);
-parallelBuilder — use parallel tree building (default: true; for inverting use -parallelBuilder=false);
-unicode — use Unicode to display stones (default: false; for inverting use -unicode or -unicode=true);
-colorful — use colors to display stones (default: false; for inverting use -colorful or -colorful=true);
-blackColor INTEGER — SGR parameter for ANSI escape sequences for setting a color of black stones (default: 34; see for details: https://en.wikipedia.org/wiki/ANSI_escape_code#3/4_bit);
-whiteColor INTEGER — SGR parameter for ANSI escape sequences for setting a color of white stones (default: 31; see for details: https://en.wikipedia.org/wiki/ANSI_escape_code#3/4_bit);
-wide — display the board wide (default: false; for inverting use -wide or -wide=true);
-grid — display the board grid (default: true; for inverting use -grid=false).

Examples

ascii.BoardEncoder.EncodeBoard() with a grid:

package main

import (
    "fmt"

    "github.com/thewizardplusplus/go-atari-cli/encoding/ascii"
    models "github.com/thewizardplusplus/go-atari-models"
    "github.com/thewizardplusplus/go-atari-models/encoding/sgf"
)

func main() {
    stoneEncoder := func(color models.Color) string {
        return string(sgf.EncodeColor(color))
    }
    placeholders := ascii.Placeholders{
        HorizontalLine: "-",
        VerticalLine:   "|",
        Crosshairs:     "+",
    }
    margins := ascii.Margins{
        Stone: ascii.StoneMargins{
            HorizontalMargins: ascii.HorizontalMargins{
                Left: 1,
            },
            VerticalMargins: ascii.VerticalMargins{
                Bottom: 1,
            },
        },
        Legend: ascii.LegendMargins{
            Row: ascii.HorizontalMargins{
                Right: 1,
            },
        },
    }

    // +-+-+-+-+-+
    // | | | | | |
    // +-+-+-+-+-+
    // | |B|W| | |
    // +-+-+-+-+-+
    // |B|W| |W| |
    // +-+-+-+-+-+
    // | |B|W| | |
    // +-+-+-+-+-+
    // | | | | | |
    // +-+-+-+-+-+
    board := models.NewBoard(models.Size{Width: 5, Height: 5})
    for _, move := range []models.Move{
        {Color: models.Black, Point: models.Point{Column: 1, Row: 1}},
        {Color: models.White, Point: models.Point{Column: 2, Row: 1}},
        {Color: models.Black, Point: models.Point{Column: 0, Row: 2}},
        {Color: models.White, Point: models.Point{Column: 1, Row: 2}},
        {Color: models.White, Point: models.Point{Column: 3, Row: 2}},
        {Color: models.Black, Point: models.Point{Column: 1, Row: 3}},
        {Color: models.White, Point: models.Point{Column: 2, Row: 3}},
    } {
        board = board.ApplyMove(move)
    }

    boardEncoder := ascii.NewBoardEncoder(stoneEncoder, placeholders, margins, 1)
    fmt.Printf("%v\n", boardEncoder.EncodeBoard(board))

    // Output:
    // e -+-+-+-+-+
    //    | | | | |
    // d -+-B-W-+-+
    //    | | | | |
    // c -B-W-+-W-+
    //    | | | | |
    // b -+-B-W-+-+
    //    | | | | |
    // a -+-+-+-+-+
    //    | | | | |
    //    a b c d e
}
