Carriage Suspension
Posted on
The model of a carriage suspension built using LEGO® pieces.
Disclaimer: LEGO® is a trademark of the LEGO Group of companies which does not sponsor, authorize or endorse this project.
For one of my projects, I needed a carriage suspension. This is my version of it.
The main requirement was that a suspension of each wheel should be independent.
Note that "PLATE 1X1, W/ 1.5 PLATE 1X2, UPWARDS" parts are only needed to prevent the rubber rings from popping off. They can be removed if you have smaller diameter rings.

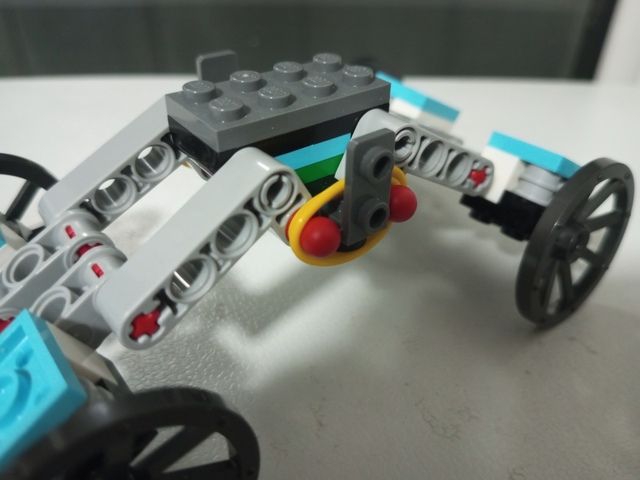

But "TECHNIC ROTOR, 2 BLADES" part under the main body is more important. It restricts the movement of the suspension arms when the model is lifted.
Photos

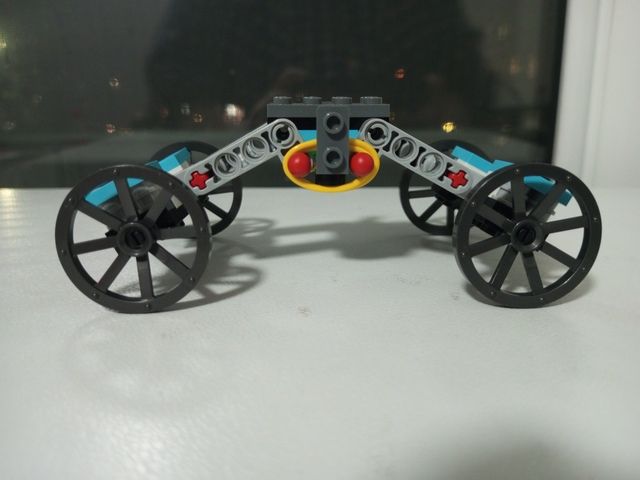

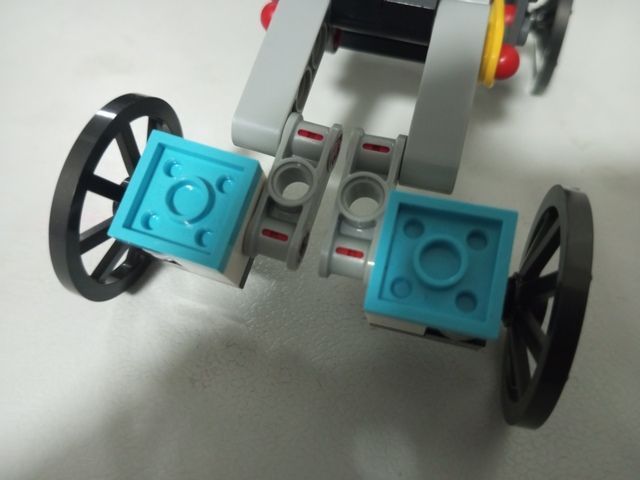

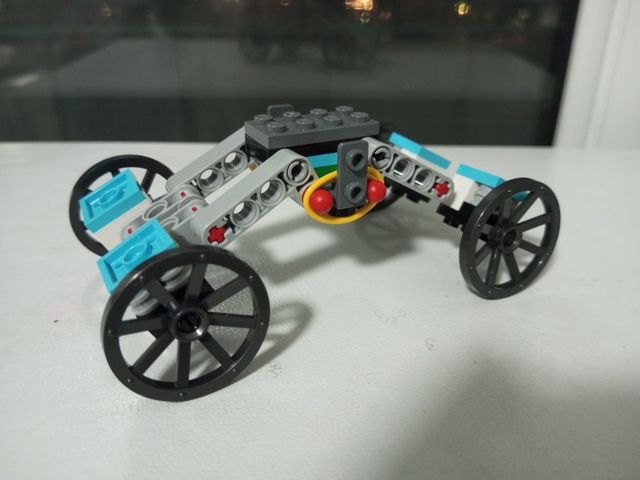

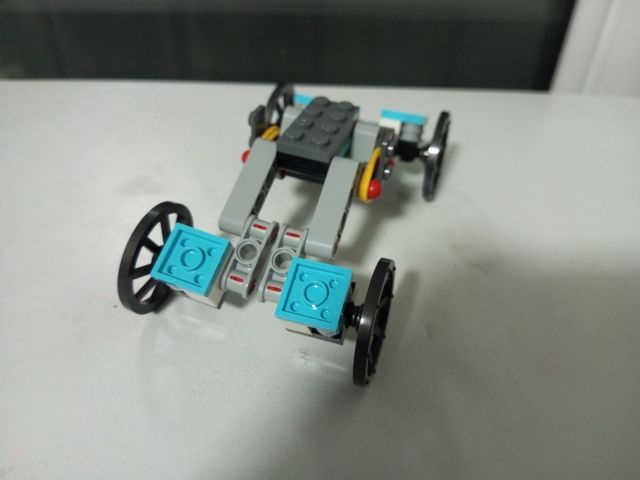

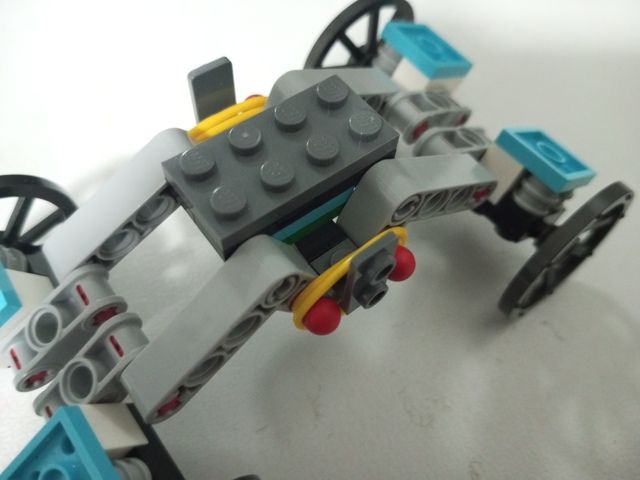

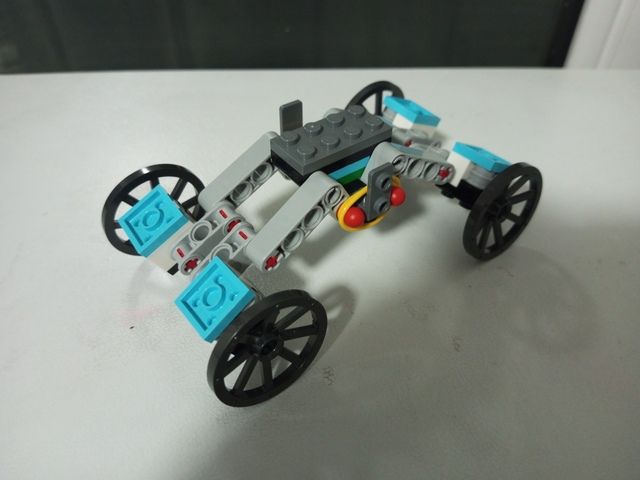

General photos

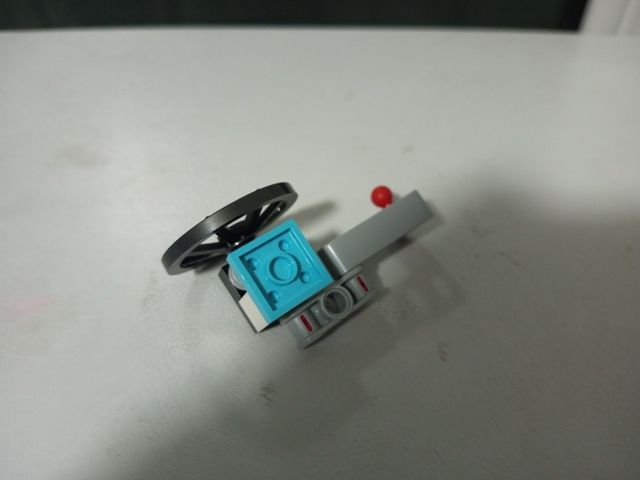

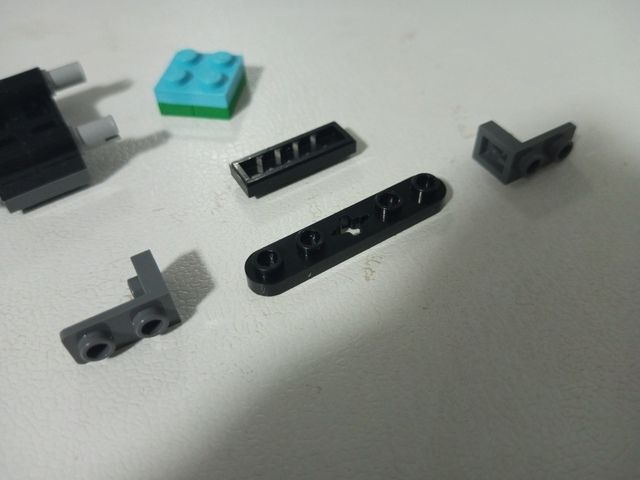

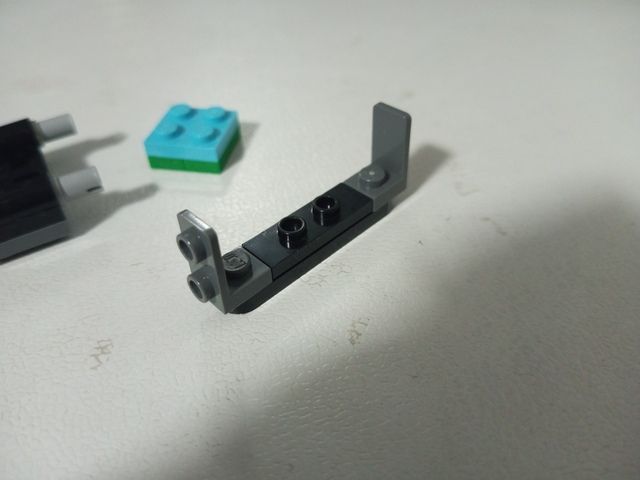

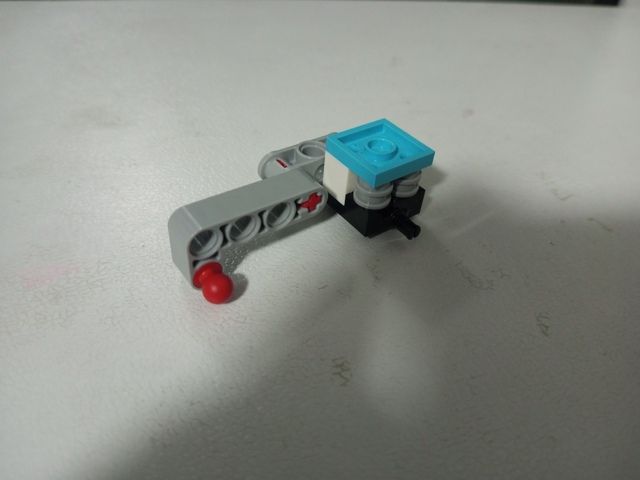

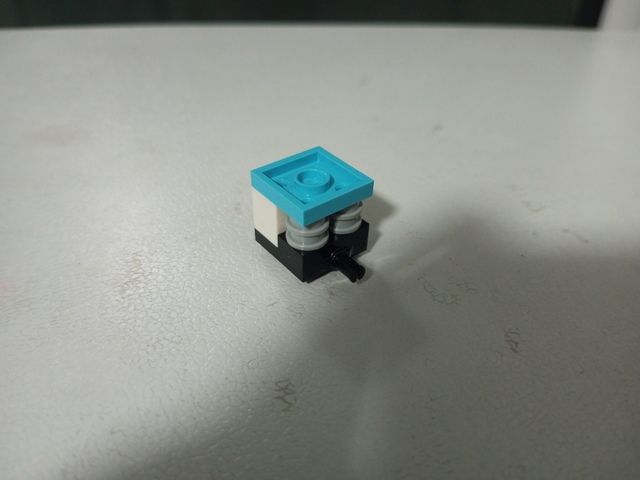

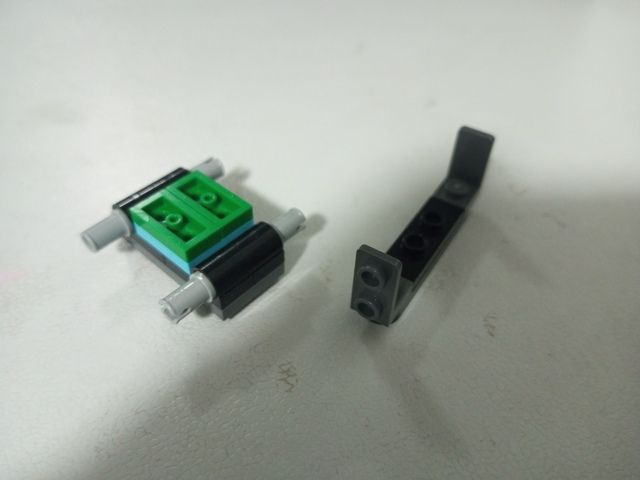

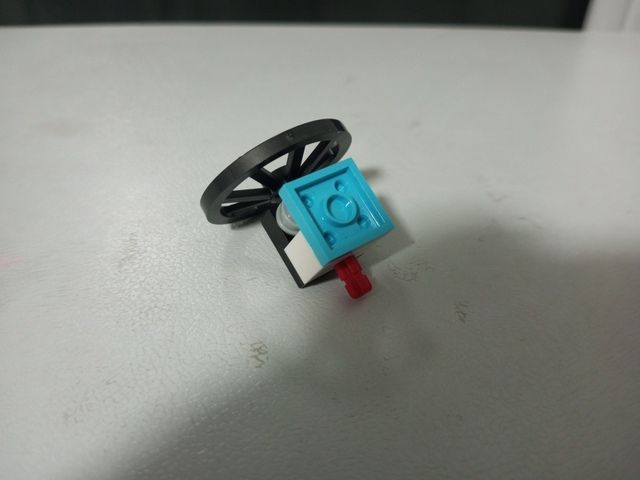

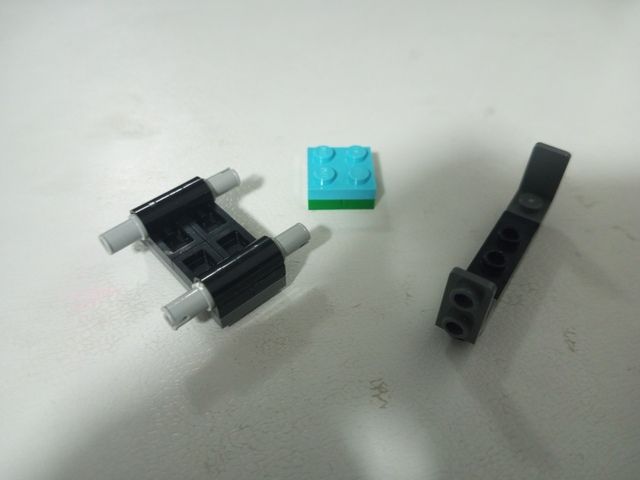

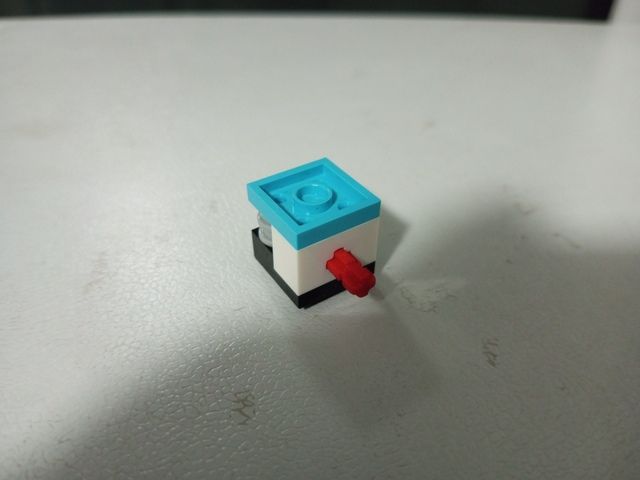

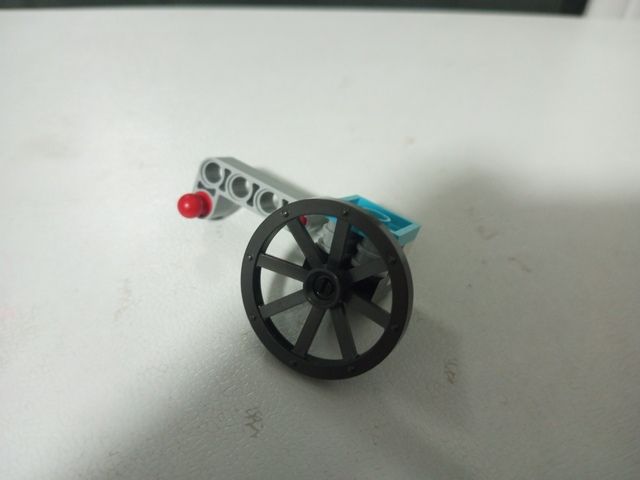

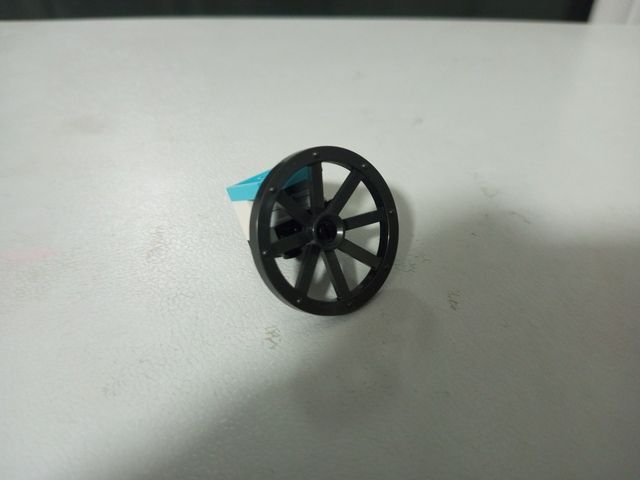

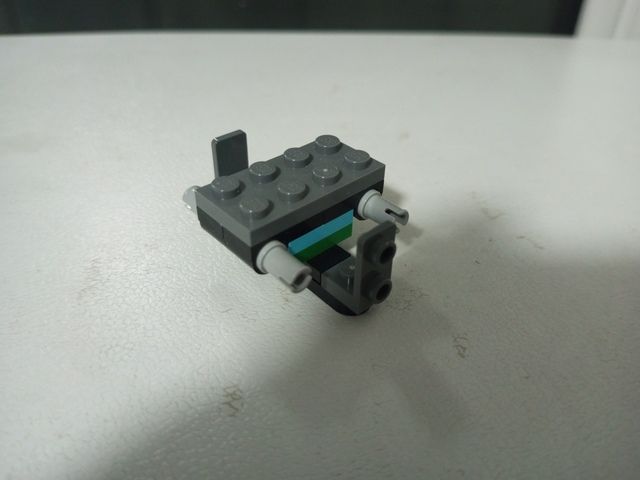

Internal structure, step #1

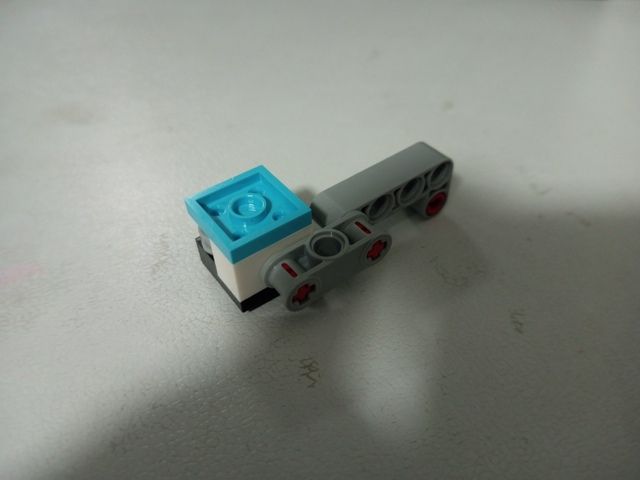

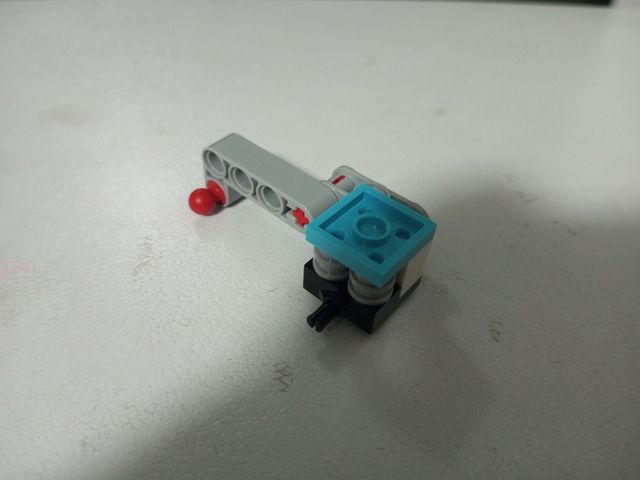

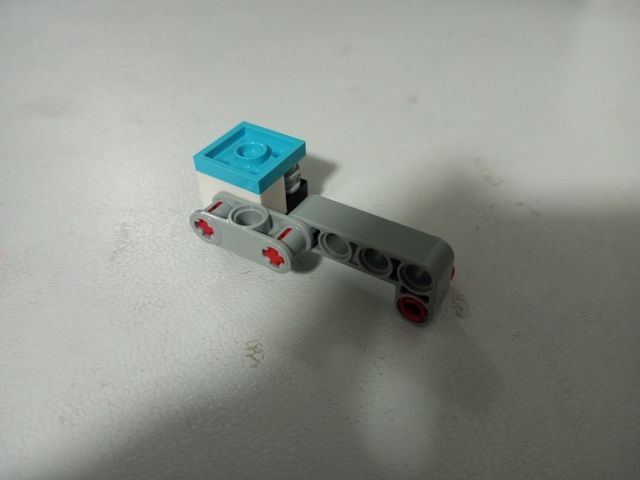

Internal structure, step #2

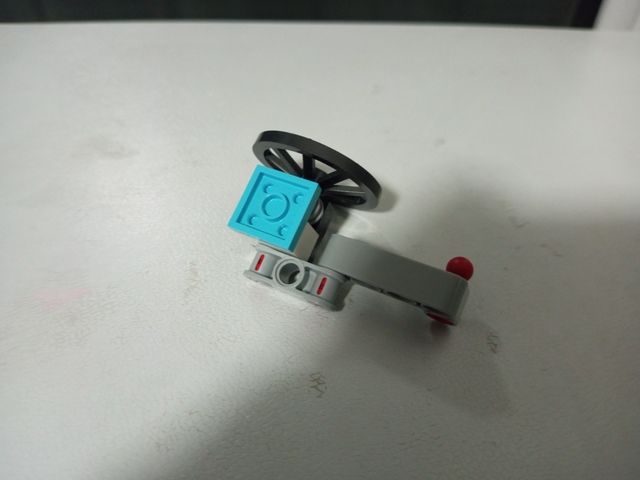

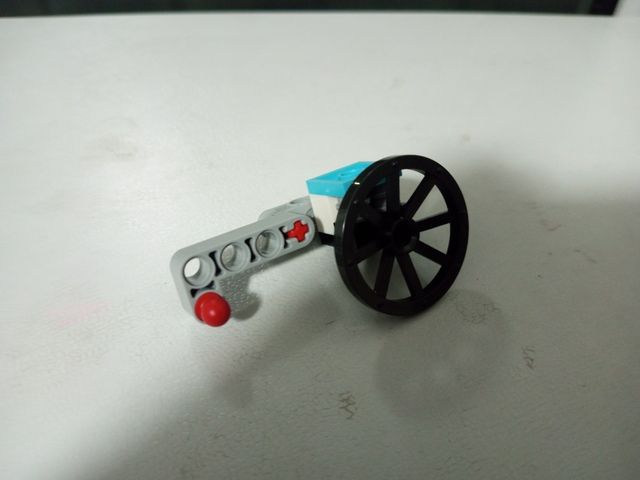

Internal structure, step #3
