Automatic Pneumatic Switch

The automatic pneumatic switch built using LEGO® Technic™ pieces.

Disclaimer: LEGO® is a trademark of the LEGO Group of companies which does not sponsor, authorize or endorse this project.

LEGO® only produces manual pneumatic switches. I wanted to build an automatic alternate based on the manual version.

This project is based on the previous one.

Note that I could have made this easier by simply connecting the motor axis directly to the switch axis. I didn't think about it at first, and then decided not to change anything, as the first solution is prettier in my opinion.

Photos

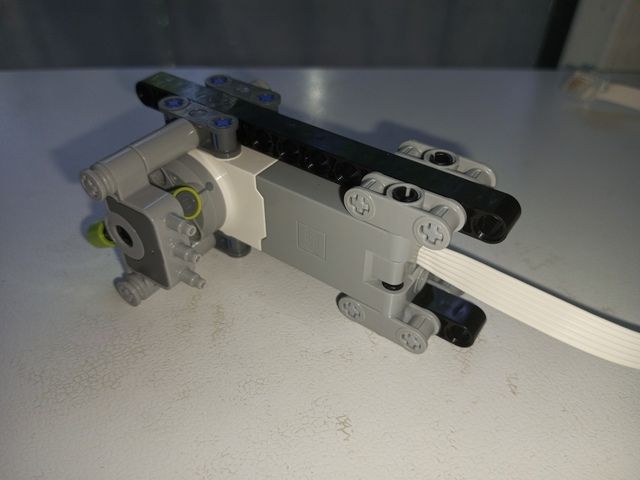

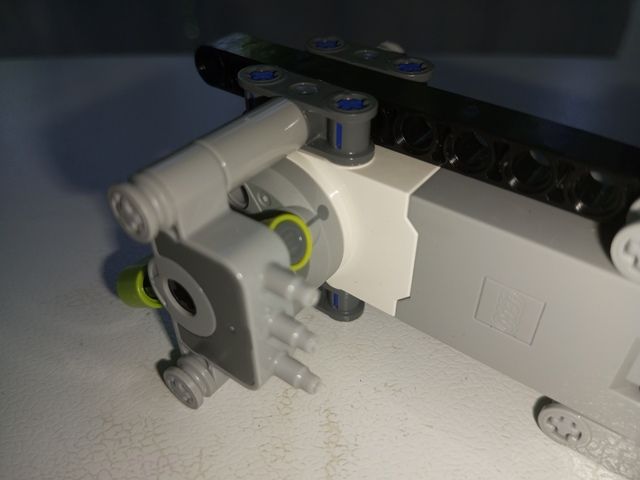

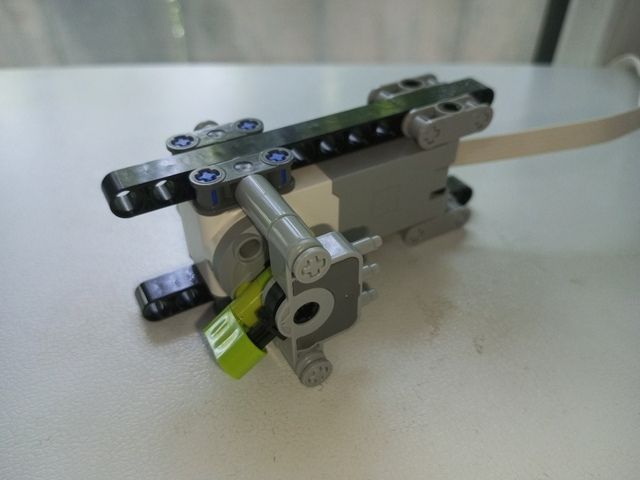

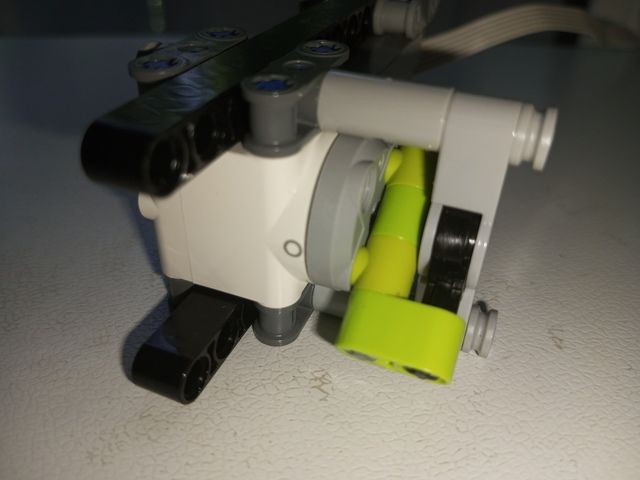

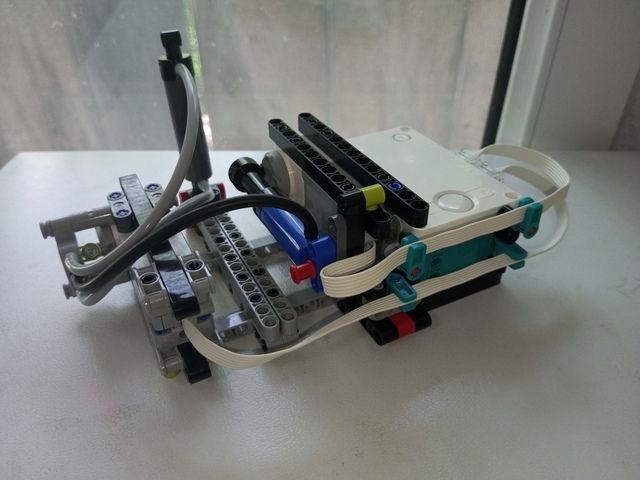

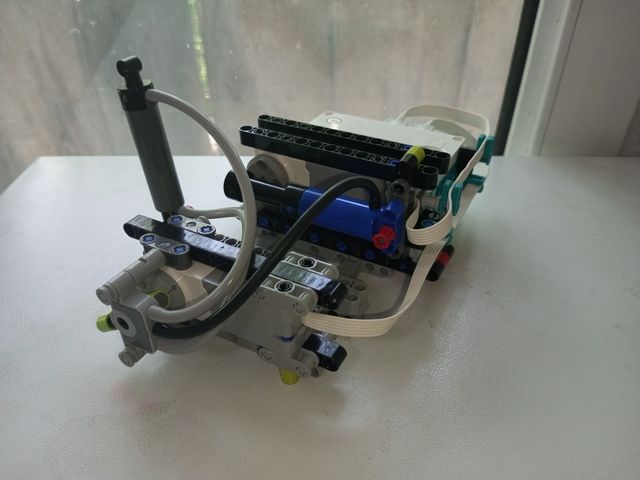

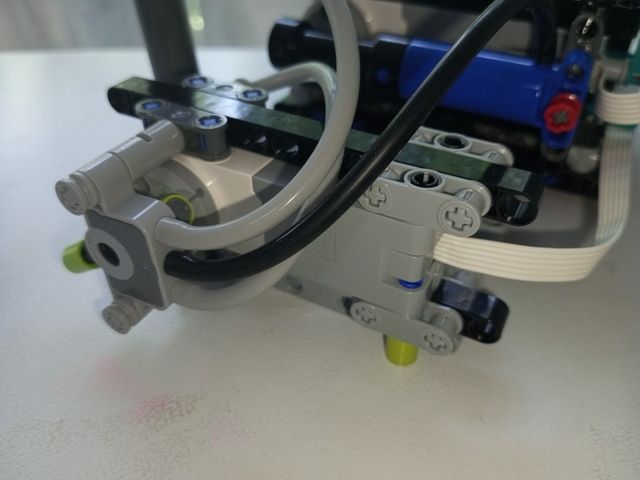

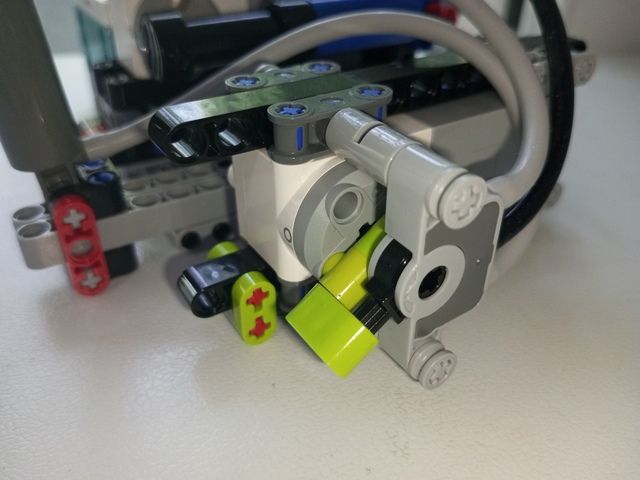

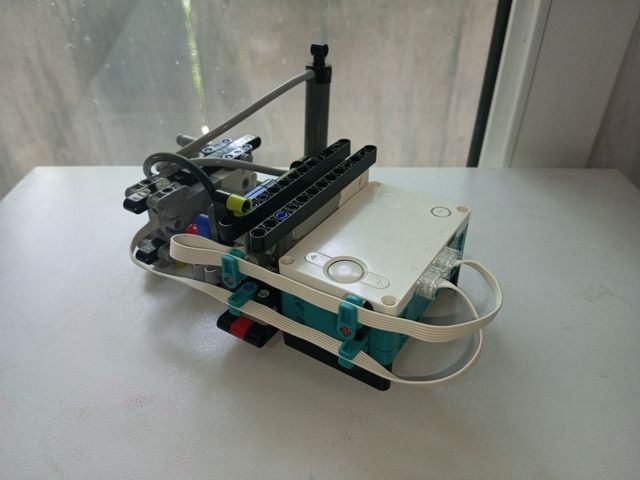

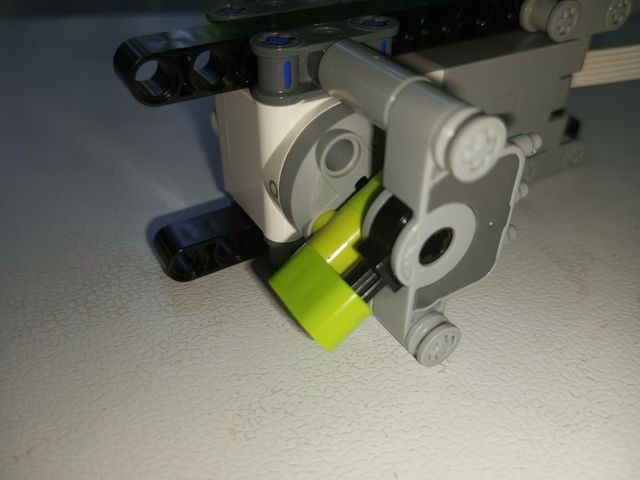

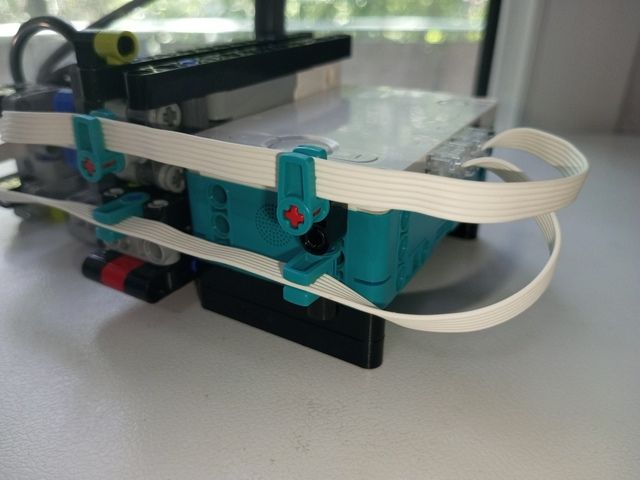

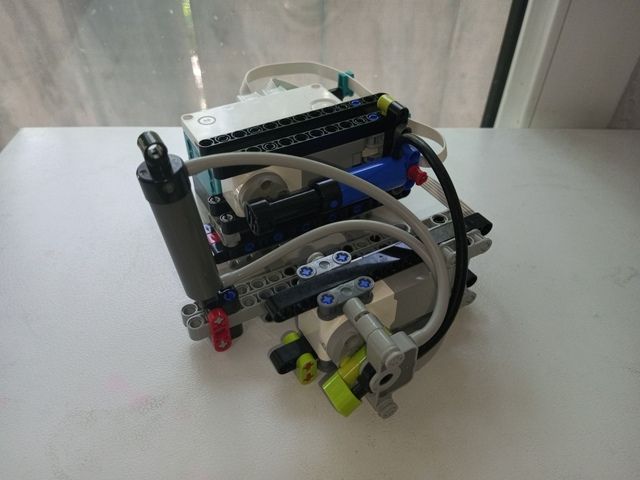

General photos

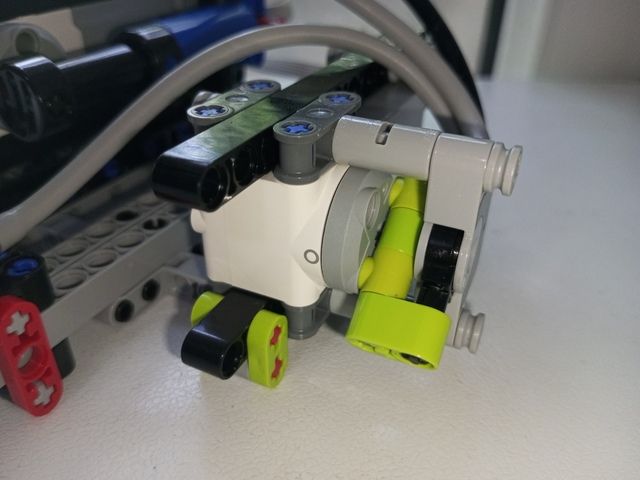

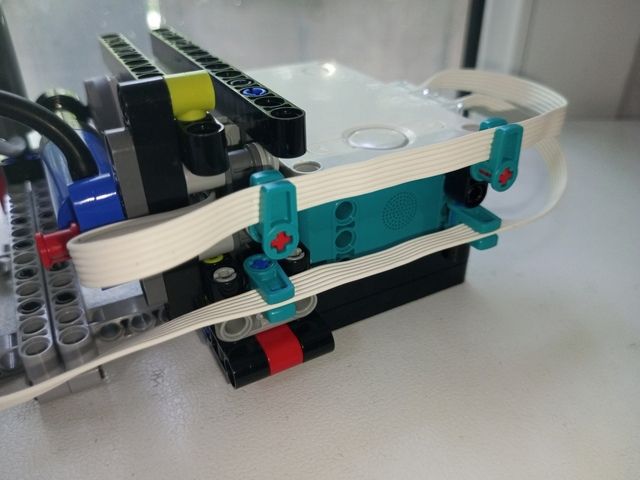

On the stand

Screenshots

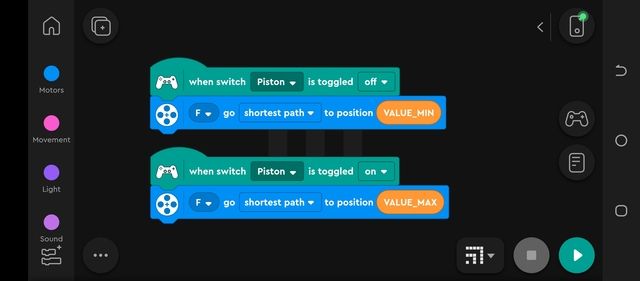

Interface

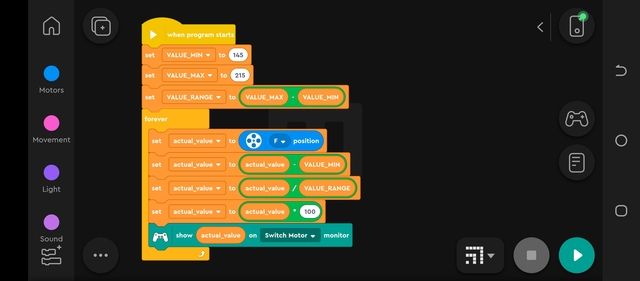

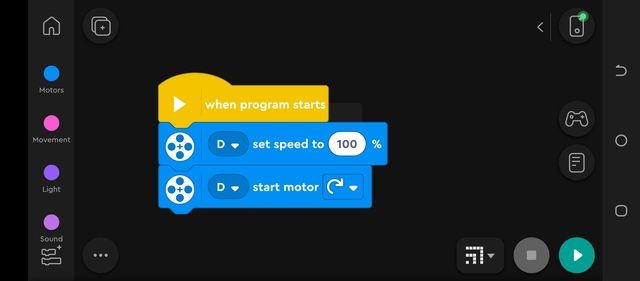

Program

Videos
